Installing Oil Pressure Control Valve (Solenoid Valve) On 4.8-Liter DFI Engines

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Screw, M6 x 20
Joint flange with sealing ring
Cap screw, M36
Oil sealing ring with engine oil
Solenoid valve/oil pressure control valve
Special socket socket-wrench insert 9753
Puller relay puller 9235

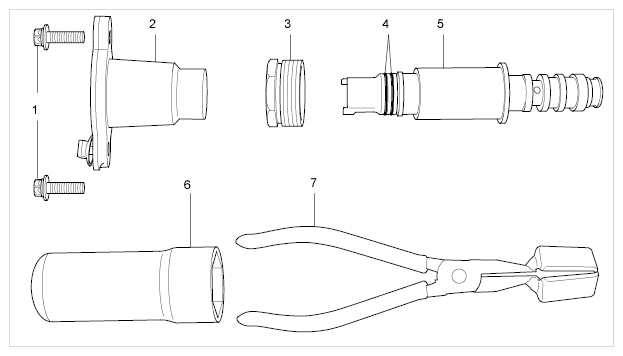

Fig 1: Identifying Oil Pressure Control Valve And Tool

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Replace two sealing rings on the oil pressure control valve -4- . Replace sealing ring on joint flange -2- .
Coat the two sealing rings on the oil pressure control valve lightly with Vaseline or engine oil.
Fit the oil pressure control valve as far as it will go into the oil pump → Removing/fitting oil pressure control valve so that the cable plug on the wire harness can be clipped in later without turning it.

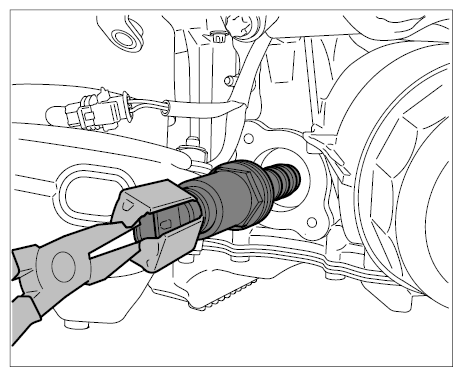

Fig 2: Removing Oil Pressure Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

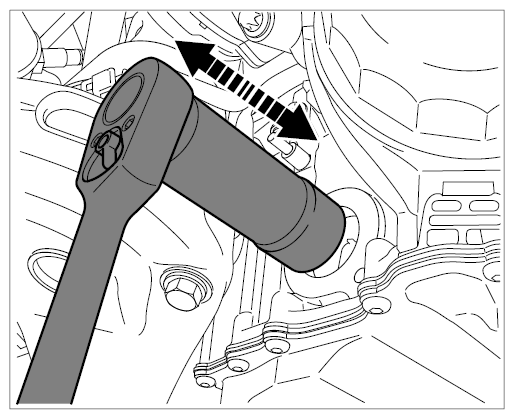

Insert cap screw into the special socket socket-wrench insert 9753 and slide it on over the oil pressure control valve. Tighten cap screw hand-tight. When everything is fitted correctly, tighten the cap screw → Using special socket . → Tightening torque: 40 Nm (30 ftlb.)

Fig 3: Identifying Socket-Wrench (9753)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide on joint flange with new sealing ring. Screw in and tighten screws -1- . → Tightening torque: 10 Nm (7.5 ftlb.)

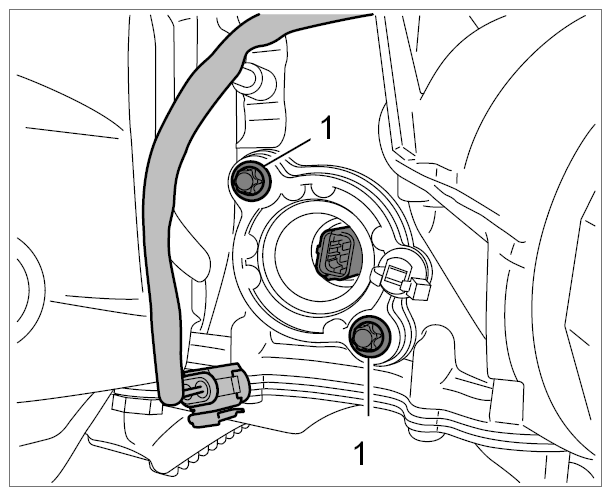

Fig 4: Identifying Oil Pressure Control Valve Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route cable, clip it in and connect cable plug.
