Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide tube
  2. O-ring
  3. Screw, M6 x 16
  4. Oil dipstick
  5. O-ring
  6. Screw, M6 x 25
  7. Oil-level sensor
  8. O-ring
  9. Joint flange for solenoid valve
  10. Screw, M6 x 20
  11. Screw, M6 x 16
    12. Fig 1: Identifying Oil Guide Housing With Accessories
    G09932716Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Oil pump with suction stage (Turbo shown)
  2. Screw, M8 x 22
  3. Oil pump sprocket
  4. Cap screw, M36 x 1.5 x 12
  5. Solenoid valve
  6. O-ring (grease before fitting)
  7. Dowel sleeve
  8. Screw, M6 x 45
  9. Sprocket cover
  10. Screw, M6 x 16
  11. Drive chain
  12. Connection for intake manifold joining socket

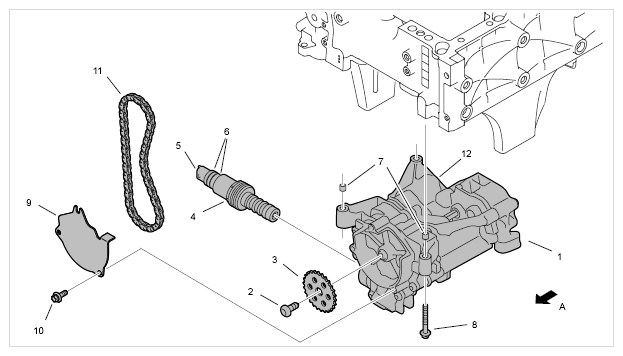

    13. Fig 2: Locating Oil Pump, Sprocket And Screws
    G09932717Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw, M6 x 20
  2. Joint flange with sealing ring
  3. Cap screw, M36
  4. Oil sealing ring with engine oil
  5. Solenoid valve/oil pressure control valve
  6. Special socket socket-wrench insert 9753
  7. Puller relay puller 9235

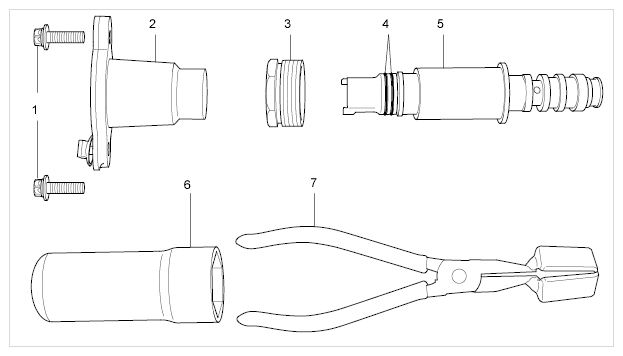

Fig 3: Identifying Oil Pressure Control Valve And Tool
G09932718Courtesy of PORSCHE CARS NORTH AMERICA, INC.
