Removing Oil Pressure Control Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electric plug connection -1-  .

    Unscrew screw -3-  and pull off oil pressure control valve -4-  .

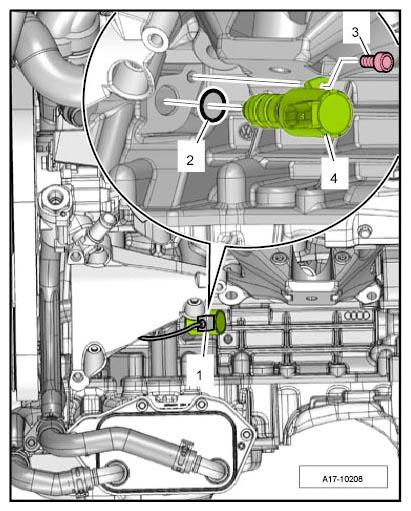

    Fig 1: Identifying Oil Pressure Control Valve
    G09932711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
