Installing Oil Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Seals must always be replaced .

Insert drive shaft for oil pump into the cylinder block.
Check that the two plastic washers are in place .

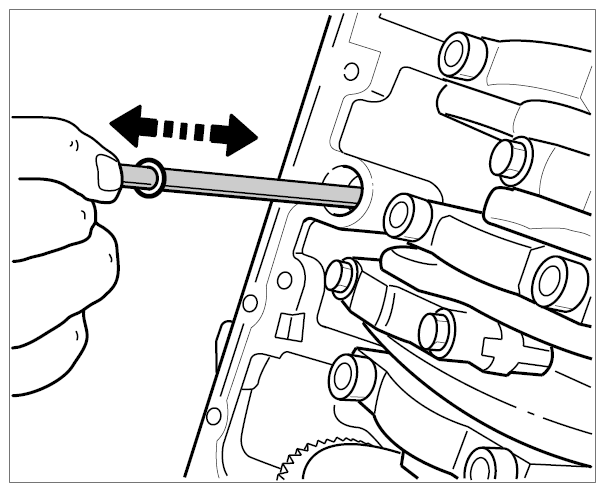

Fig 1: Inserting Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position oil pump on cylinder block. Fastening screws -2- must then be screwed in .
Insert fastening screws -1- for oil pressure pipe with screw locking agent and tighten them. → Tightening torque: 8 Nm (6 ftlb.)
Tighten fastening screws -2- on oil pump. → Tightening torque: 23 Nm (17 ftlb.)

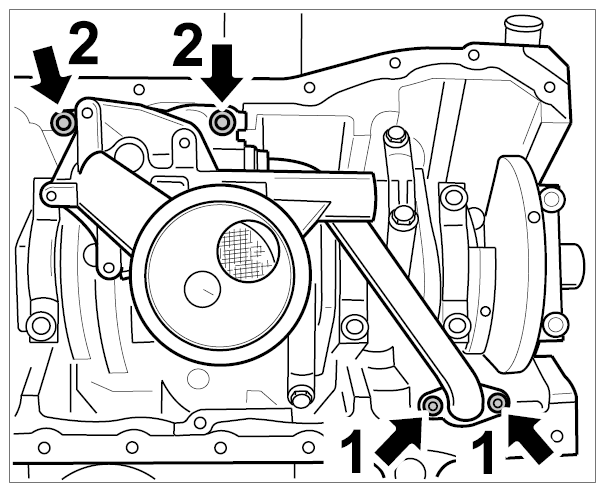

Fig 2: Locating Oil Pump Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
