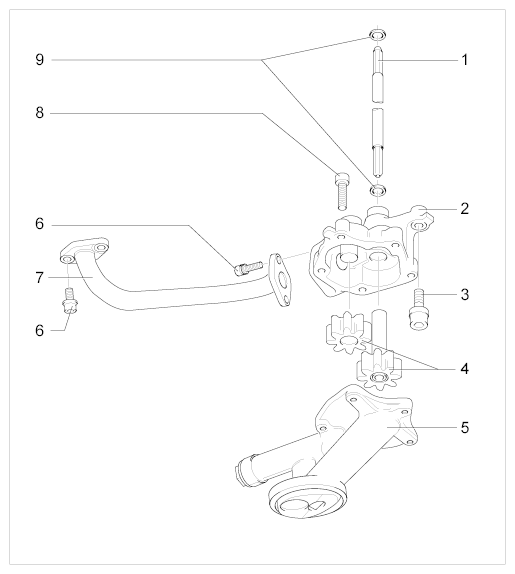

Component Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- -1- - Drive shaft for oil pump drive; component is symmetrical, thus it is not possible to install incorrectly
- -2- - Oil pump
- -3- - → Tightening torque: 23 Nm (17 ftlb.)
- -4- - Gear wheels; tooth flank play: 0.20 mm; axial flank play: 0.10 mm
- -5- - → Opening pressure: 5.5 bar+/-0.2 bar ; clean intake strainer
- -6- - → Tightening torque: 8 Nm (6 ftlb.) ; fit medium-tight with screw locking agent
- -7- - Oil pressure pipe; insert with sealant
- -8- - → Tightening torque: 8 Nm (6 ftlb.)
- -9- - Sealing ring; replace if damaged
