Installing Oil Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit oil level sensor with a new seal. Tighten fastening screws -arrows-  . → Tightening torque: 10 Nm (7.5 ftlb.)

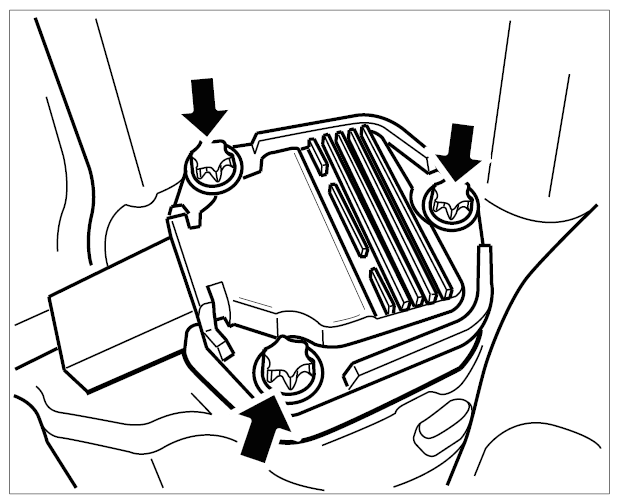

    Fig 1: Locating Oil Level Sensor Screws
    G09932694Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Slide on and engage connector.
  3. Fill in engine oil and check engine-oil level → 170101 CHECKING ENGINE-OIL LEVEL .
