Oil Pressure Switch For Reduced Oil Pressure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Switching pressure 0.75...1.05 bar

Grey insulator

→ Tightening torque: 20 Nm

-1- Oil pressure switch for reduced oil pressure
-2- Electric plug connection

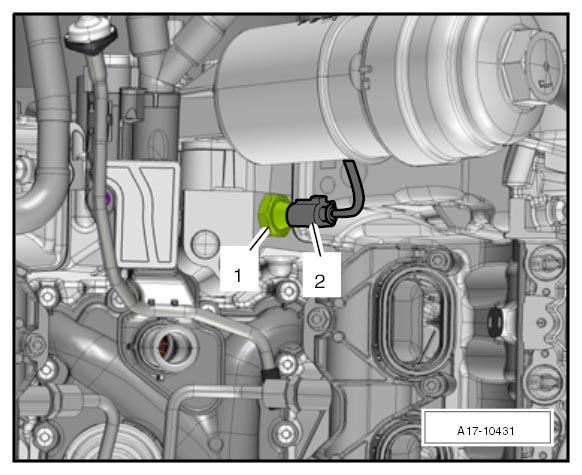

Fig 1: Identifying Oil Pressure Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
