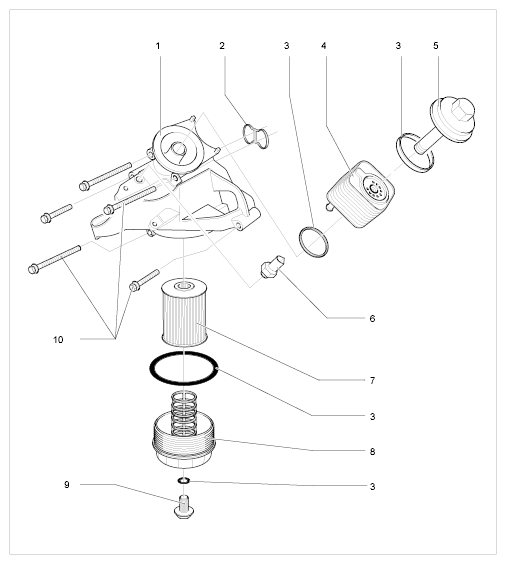

Component Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| -1- | Oil-filter console | 1 | ||
| -2- | Sealing ring | 1 | Replace when removing, oil lightly | |
| -3- | Sealing ring | 3 | Replace when removing, oil lightly | |
| -4- | Oil cooler | 1 | Note installation position | |
| -5- | Cover for oil cooler | 1 | ||
| -6- | Oil-pressure sender | 1 | ||
| -7- | Oil filter element | 1 | ||
| -8- | Oil filter cover | 1 | Drain after removal | Replace sealing ring when removing, oil lightly |
| -9- | Oil drain plug for oil filter cover | 1 | ||
| -10- | Fastening screws | 5 |
