Installing Oil-Pressure Sender
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).
Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

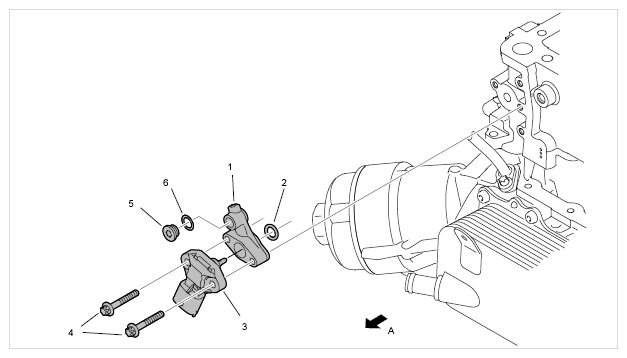

Component overview of oil-pressure sender
- Oil-pressure sensor adapter
- Sealing ring
- Oil-pressure sender with temperature sensor
- Screw, M6 x 40
- Stopper
- Sealing ring
- Direction of travel
- Replace sealing rings for adapter and oil-pressure sender.
- Slide oil-pressure sender -3- into the adapter -1- .
- Fit the fastening screws -4- .
- Plug in connector for oil-pressure sender.
