Checking Oil Pressure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
→ Ventilate the work area well.
→ Never ingest or inhale.
→ Read specific information on the Hazard Sheet.
→ Do not smoke, eat or drink in the work area.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapors.
→ Attach warning sign in a clearly visible position.
Information
- Oil pressure may be too low for a number of reasons:
- Oil is diluted .
- Oil pump is faulty .
- Bearing clearance is too large (e.g. crankshaft bearing) .
- Oil level is too low .
- Oil pressure-regulating valve is faulty .
- Incorrect oil has been used. Only use oil that has been approved by Porsche for the measurement .
Information

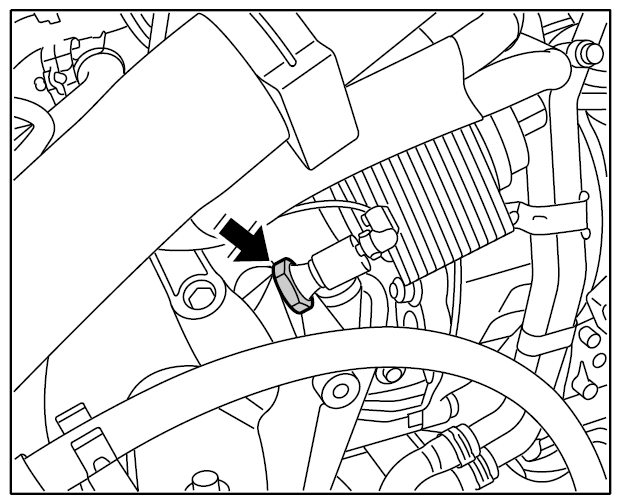

- The oil-pressure sender is located on the oil-filter console to the left under the generator .
Information
- When the oil-pressure sender is unscrewed, approx. 0.3 liters of engine oil will escape .
Collect emerging engine oil and dispose of it in accordance with the applicable national laws .
- Loosen and unscrew oil-pressure sender. → Removing Oil-Pressure Sender
- Use adapter insert 4 with a suitable sealing ring instead of the oil-pressure sender and tighten hand-tight.

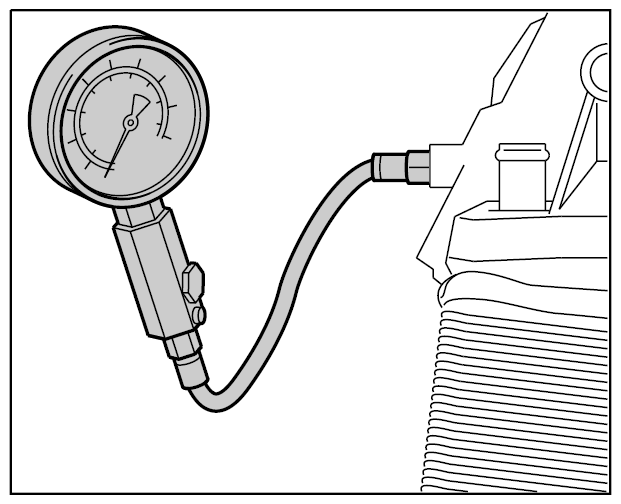

- Connect the test hose to the adapter insert.
- Connect oil pressure tester "OP 85" to the test hose.
Information
- The oil temperature must be between 80 and 100 °C when measuring oil pressure .
- Check the oil temperature using a special thermometer or PST II tester .
- Start the engine and rev to the required test speed. Read off the oil pressure on the oil pressure tester "OP 85".
Engine speed [RPM] Oil pressure [bar] 1, 500 1.7 2, 000 3.0 to 5.5 more than 2, 000 7.0 Information
- When the oil pressure tester "OP 85" is unscrewed, approx. 0.3 liters of engine oil will escape .
Collect emerging engine oil and dispose of it in accordance with the applicable national laws .
- Remove oil pressure tester "OP 85" and test hose.
- Screw in oil-pressure sender with a new sealing ring and tighten it. → Installing Oil-Pressure Sender → Tightening torque: 20 Nm (15 ftlb.)
