Checking Engine-Oil Level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect oil level

Risk of damage to engine or catalytic converter

→ Check the oil level regularly.

→ The oil level must not fall below the Minimum marking or rise above the Maximum marking.

→ Only use engine oil approved by Porsche.

Information

Requirements for oil level measurement using the instrument cluster:

Vehicle must be standing horizontally
Oil temperature 80°... 100°
Engine off
Ignition on
Wait two minutes after opening the engine compartment lid

Select the Oil level function in the multi-function display.
1. 1.1. Select Vehicle in the main menu, then select Oil level and confirm your selection.
Check the engine-oil level on the segment display and top up engine oil if necessary.
1. 2.1. The segment display is green if the engine-oil level is between the Min and Max markings.

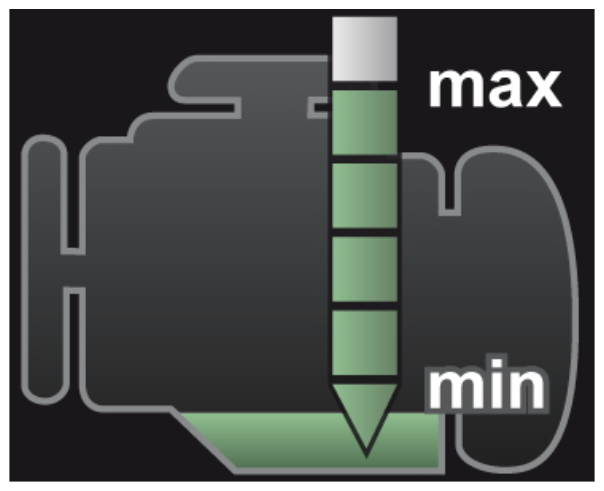

  - Maximum engine-oil level → Maximum engine-oil level , segments are green .

    Fig 1: Identifying Engine-Oil Level (Maximum)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

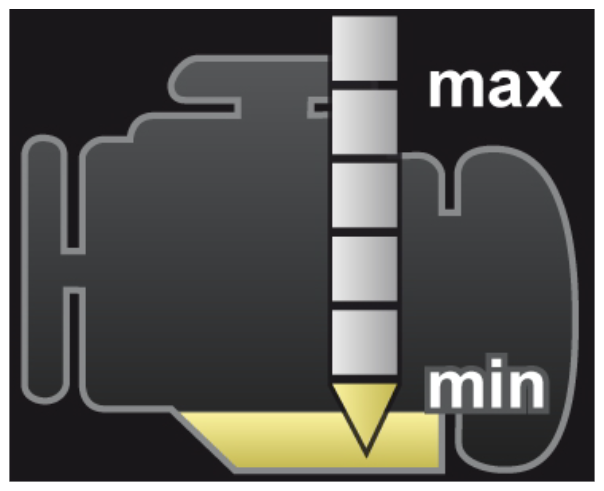

  - Minimum engine-oil level → Minimum engine-oil level , lowest segment is yellow .

    Fig 2: Identifying Engine-Oil Level (Minimum)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

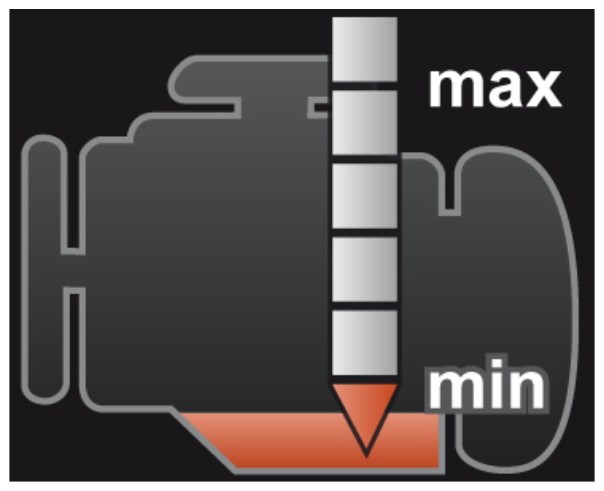

  - Engine-oil level too low → Engine-oil level too low , lowest segment is red .

    Fig 3: Identifying Engine-Oil Level (Low)
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

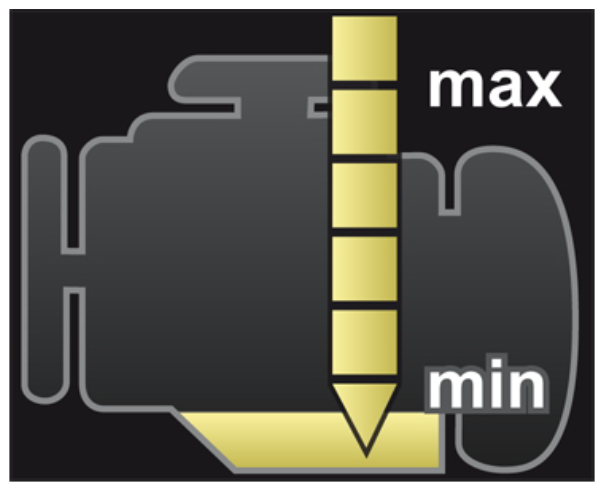

  - Engine-oil level too high → Engine-oil level too high , all segments are yellow .
  Fig 4: Identifying Engine-Oil Level (High)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Refill quantity:
- The difference between the Min and Max markings is approx. 1 liter
- One segment of the display corresponds to approx. 0.25 liters
