Installing Light-Emitting Diode For Alarm System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

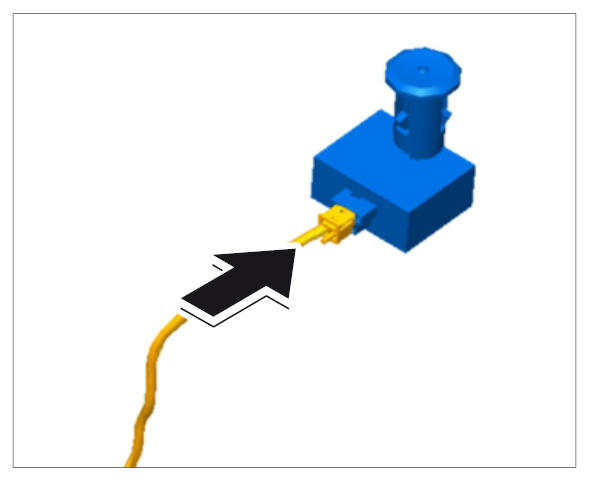

  1. Plug in electric plug connection at the light-emitting diode holder until it engages securely -arrow-  .
    Fig 1: Plugging In Electric Plug Connection
    G09942016Courtesy of PORSCHE CARS NORTH AMERICA, INC.

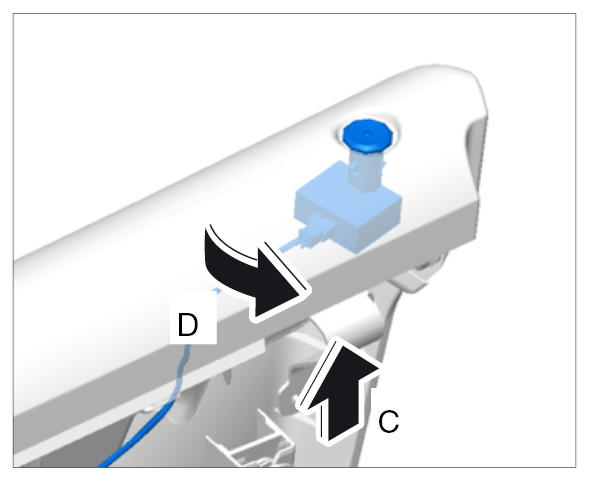

  2. Position light-emitting diode holder -arrow C-  , press it in and turn it anti-clockwise as far as it will go -arrow D-  .
    Fig 2: Locking Light-Emitting Diode Holder
    G09942017Courtesy of PORSCHE CARS NORTH AMERICA, INC.
