Removing Rear Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip Kessy antenna from the locking lugs -1-  on the bracket.
  2. Release and unplug electric plug connection -A-  .
  3. Remove rear Kessy antenna -B-  .

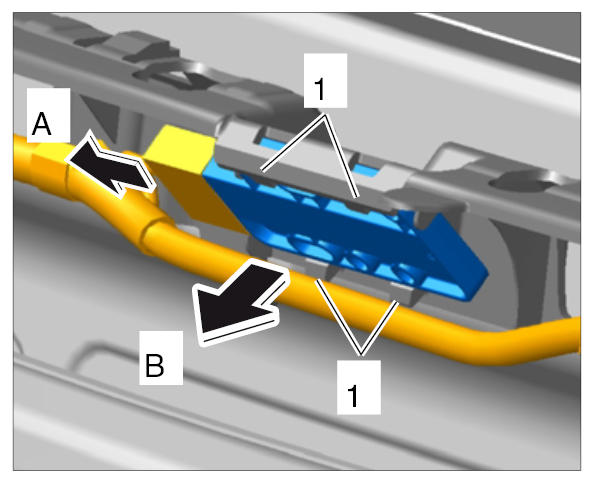

    4. Fig 1: Removing Rear Kessy Antenna
    G09942007Courtesy of PORSCHE CARS NORTH AMERICA, INC.
