Removing Centre Console Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit
  1. Unscrew the two fastening screws -1-  .
  2. Release and unplug electric plug connection -A-  .
  3. Remove Kessy antenna in center console -B-  .

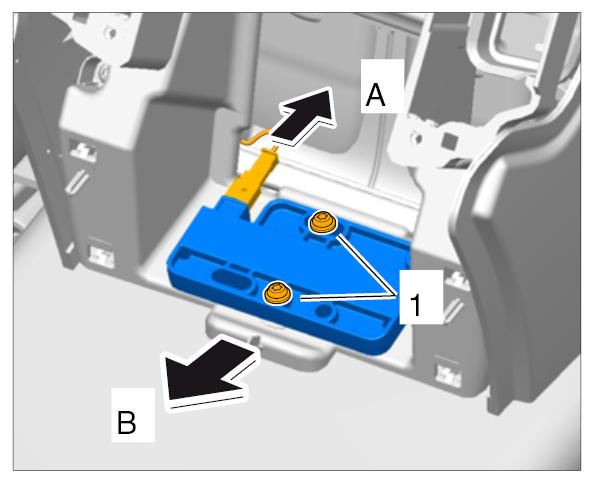

    4. Fig 1: Removing Kessy Antenna In Centre Console
    G09942003Courtesy of PORSCHE CARS NORTH AMERICA, INC.
