Removing Alarm Siren

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

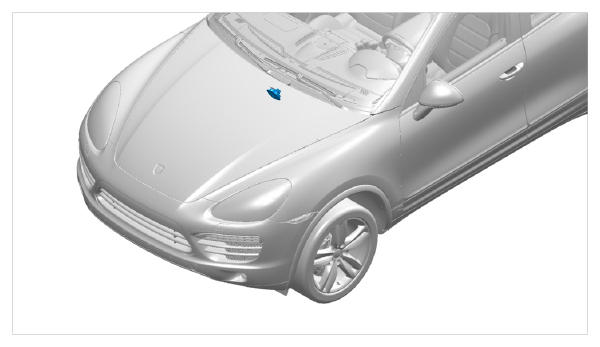

Fig 1: Identifying Alarm Siren Position
G09941997Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit
  1. Screw off fastening nut -1-  (-arrow A-  ).
  2. If necessary, secure the fastening screw -2-  to prevent it from turning using a suitable tool.
  3. Remove alarm siren -3-  in an upward direction -arrow B-  .

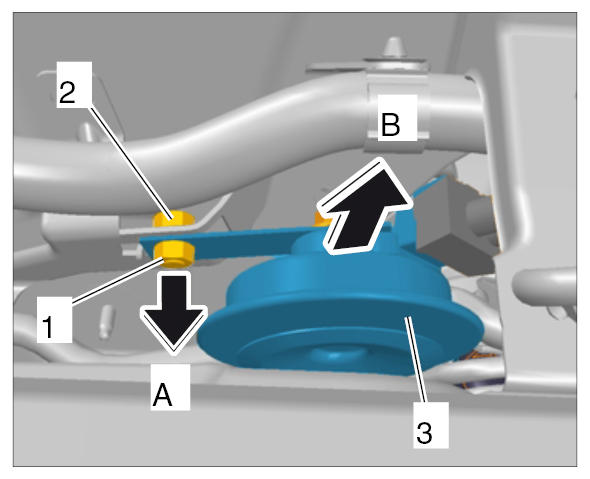

    4. Fig 2: Removing Alarm Siren
    G09941998Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Release and pull off electric plug connection -4-  .

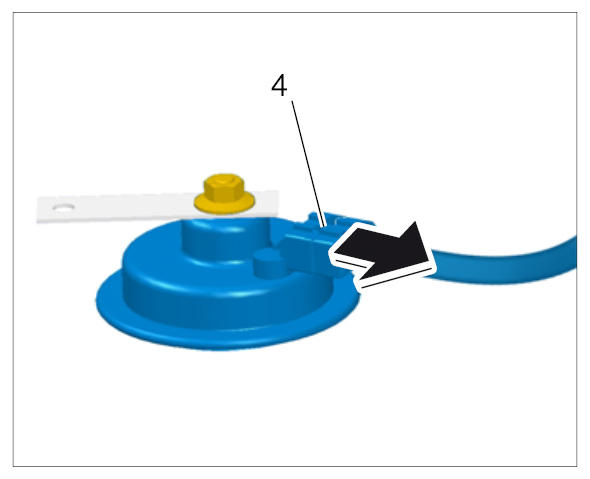

    Fig 3: Pulling Off Electric Plug Connection
    G09941999Courtesy of PORSCHE CARS NORTH AMERICA, INC.
