Installing Alarm Siren

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in electric plug connection -4-  until it engages securely.

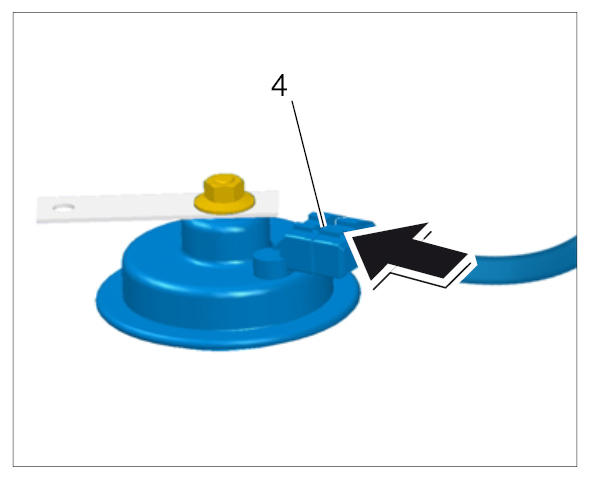

    Fig 1: Plugging In Electric Plug Connection
    G09942000Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position the alarm siren -3-  (-arrow C-  ) and screw on the fastening nut -1-  .
  3. If necessary, secure the fastening screw -2-  to prevent it from turning using a suitable tool.
  4. Tighten fastening nut -1- → Tightening torque: 20 Nm (15 ftlb.)  (-arrow D-  ).

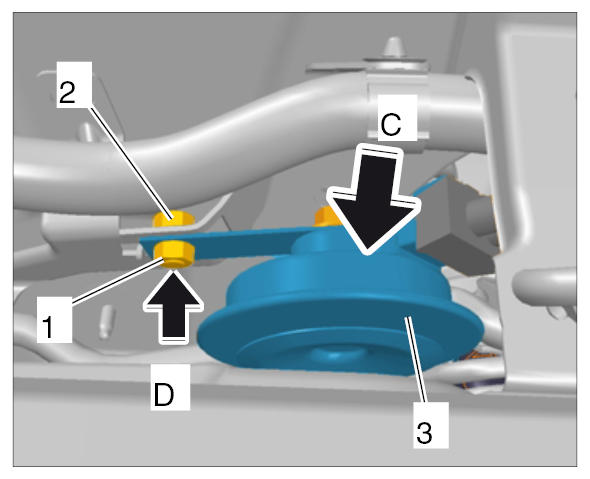

    5. Fig 2: Installing Alarm Siren
    G09942001Courtesy of PORSCHE CARS NORTH AMERICA, INC.
