Disassembling Remote Control

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull emergency key out of the remote control  .
    1. 1.1. Release locking mechanism -arrow-  and pull emergency key out of the remote control -arrow-  .

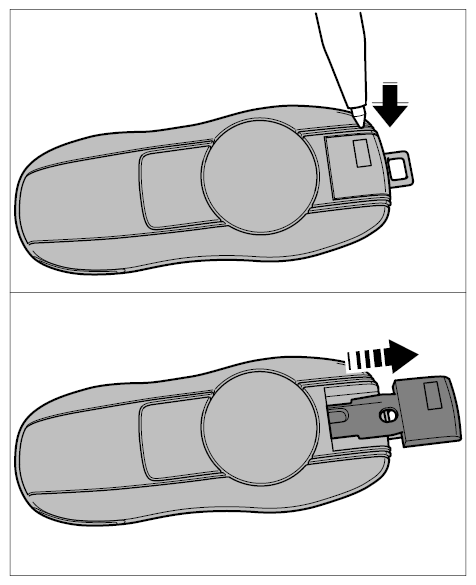

      Fig 1: Pulling Out Emergency Key
      G09941994Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove battery from the remote control  .
    1. 2.1. Open the cover -arrow-  and remove the battery -arrow-  .

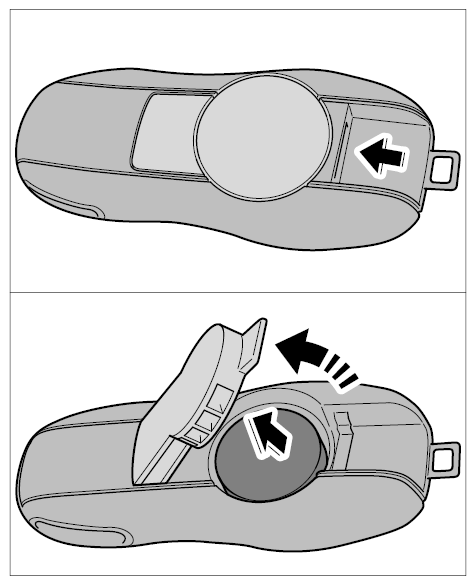

      Fig 2: Removing Battery From Remote Control
      G09941995Courtesy of PORSCHE CARS NORTH AMERICA, INC.
