Switching On Main Switch For Power Supply

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The main switch for the power supply must be switched on before the vehicle handover may be started with PIWIS Tester II 9818 .

The main switch for the power supply is in the power distributor .
The power distributor is located under the driver's seat on the left in the direction of travel .

Move driver's seat back as far as it will go.

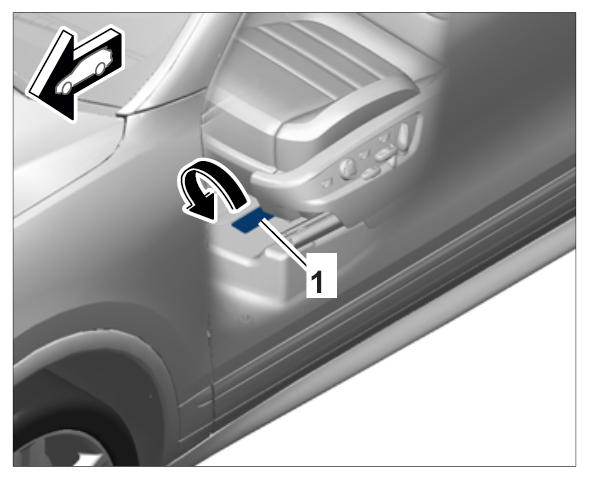

Open the cover -1- (-arrow- ).

Fig 1: Opening Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

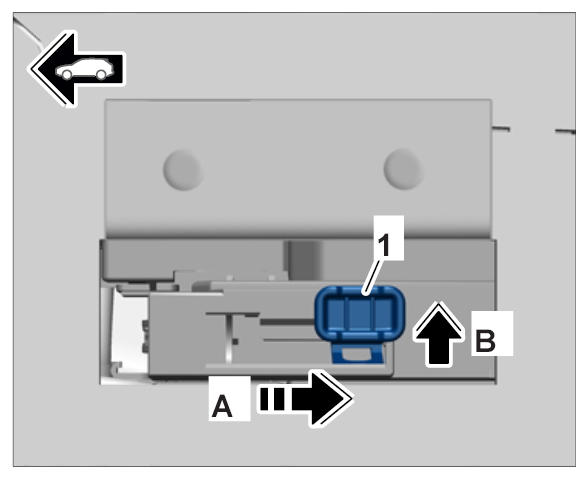

Push the switch -1- on the power distributor to the rear in direction of travel -A- and lock it -B- .
The main switch for power supply is then switched on.

Fig 2: Pushing Switch On Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always check that the main switch for the power supply is locked correctly before driving the vehicle again.
Perform vehicle handover. → 0101IN DIAGNOSTIC SYSTEM: PERFORMING VEHICLE HANDOVER AND CODING REAR-END ELECTRONICS .
