Switching On Main Power Supply Switch
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The main switch for the power supply must be switched on before the vehicle handover may be started with PIWIS Tester II 9818 .
- The main switch for the power supply is in the power distributor .
- The power distributor is located under the driver's seat on the left in the direction of travel .
- Move the driver's seat back as far as it will go.
- There is a slotted opening in the carpet in front of the driver's seat.
The power distributor is located under the carpet.

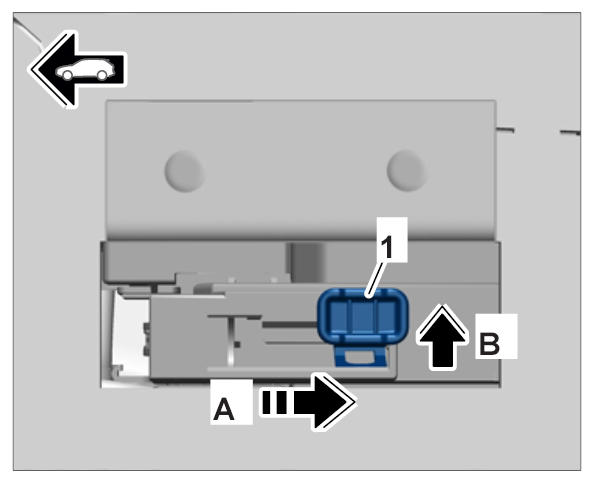

- Push the switch -1-
on the power distributor to the rear in direction of travel -A-
and lock it -B-
.
Actuate the switch through the cut-out in the carpet.
The main switch for the power supply is then switched on.
Information
Always check that the main switch for the power supply is locked correctly before driving the vehicle again.
- Perform vehicle handover. → 0101IN DIAGNOSTIC SYSTEM: PERFORMING VEHICLE HANDOVER AND CODING REAR-END ELECTRONICS .
