Removing Front Camera

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

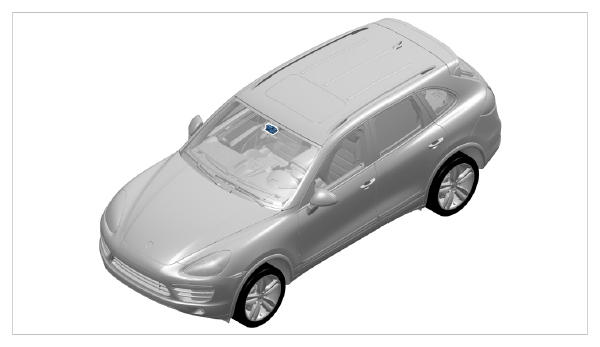

Fig 1: Identifying Front Camera Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

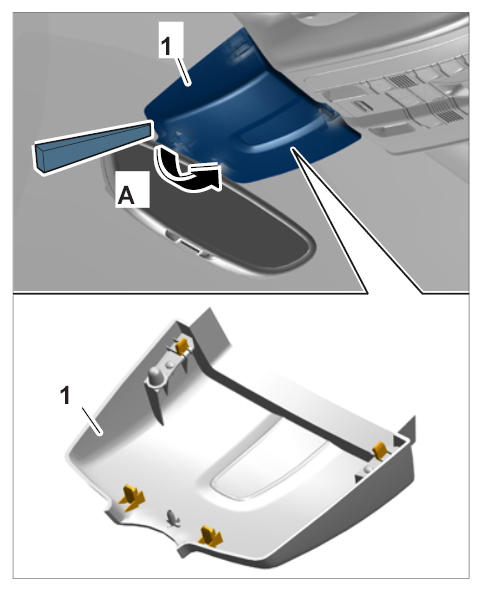

Remove cover on front camera -1- .
1. 1.1. Carefully loosen cover on front camera -1- at the bottom, in the mirror base area, using a plastic wedge.
2. 1.2. Carefully loosen cover on front camera -1- at the rear left and right sides using a plastic wedge.
3. 1.3. Pull cover on front camera -1- out of the centering device and remove it -A- .

  Fig 2: Removing Cover On Front Camera
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

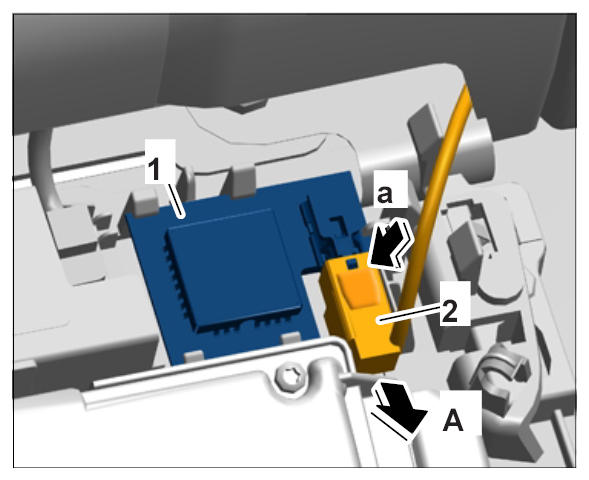

Unclip GPS antenna -1- , release electric plug connection -2- (-a- ) and disconnect it -A- .

Fig 3: Removing GPS Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

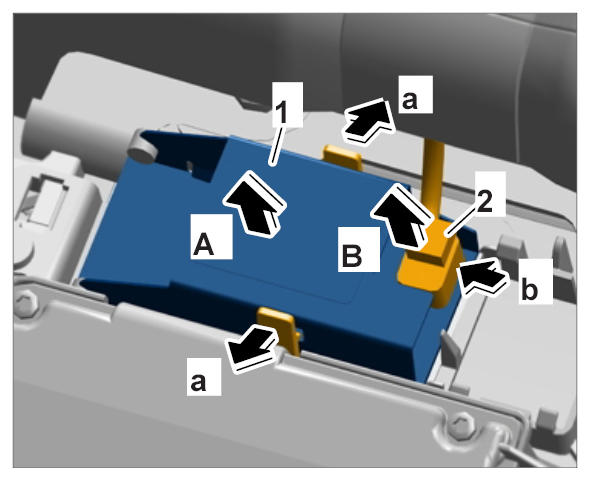

Unclip GSM antenna -1- (-a- ) and remove it -A- . Release electric plug connection -2- (-b- ) and disconnect it -B- .

Fig 4: Removing GSM Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

↓ Information

Do not touch the front camera lens!

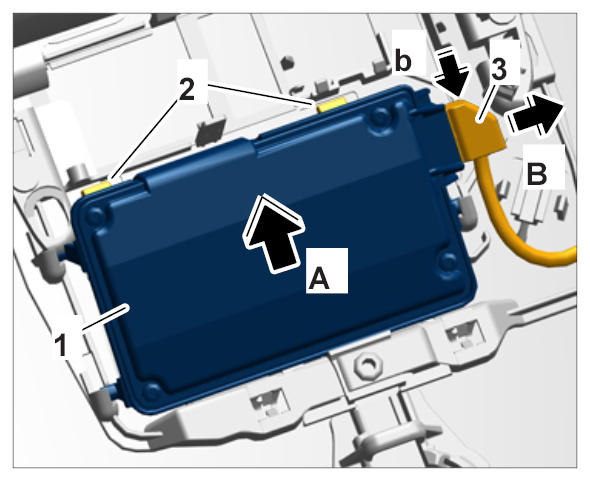

Unclip front camera -1- (-2- ) and press it up and out -A- .
Information

Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
- Never touch the electric pins and plug contacts .
Information

Do not touch the front camera lens!
Release electric plug connection -3- (-b- ) and disconnect it -B- .

Fig 5: Removing Front Camera

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
