Replacing/Disassembling Switch Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -2-  on the switch console -1-  .

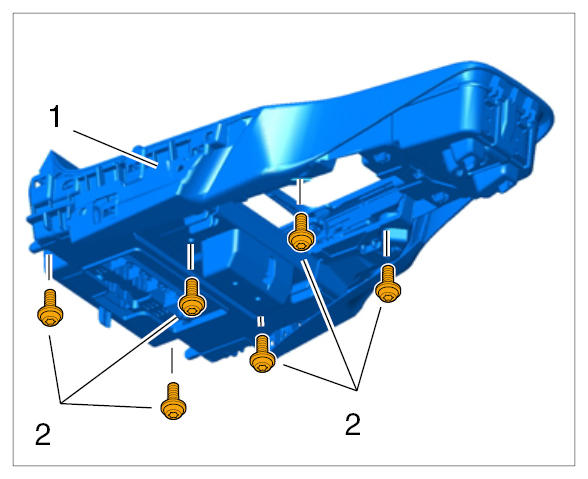

    Fig 1: Identifying Switch Console With Fastening Screws
    G09941955Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove switch console from the retaining frame.
  3. Remove selector switch for the levelling system. → REMOVING LEVELLING SYSTEM (SELECTOR SWITCH)
