Removing Door Warning Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

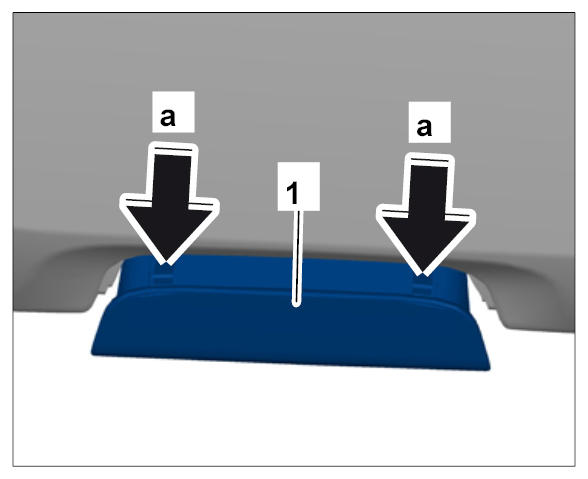

  1. Release door warning light -1-  using a small screwdriver -arrows a-  and pull it out of the door panel horizontally.
    Fig 1: Removing Door Warning Light
    G09941945Courtesy of PORSCHE CARS NORTH AMERICA, INC.

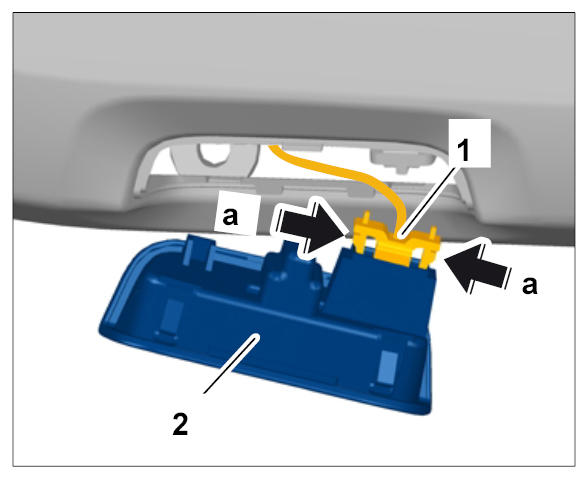

  2. Release electric plug connection -1-  (-arrows a-  ) and disconnect it from the door warning light -2-  .
    Fig 2: Disconnecting Electric Plug Connection
    G09941946Courtesy of PORSCHE CARS NORTH AMERICA, INC.
