Removing Footwell Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The front footwell lights are installed in the covers under the dashboard.

The rear footwell lights are installed in the front seats.

  1. Lever out footwell light -1-  using a plastic wedge.
  2. Release and disconnect electric plug connection -2-  (-a-  ).

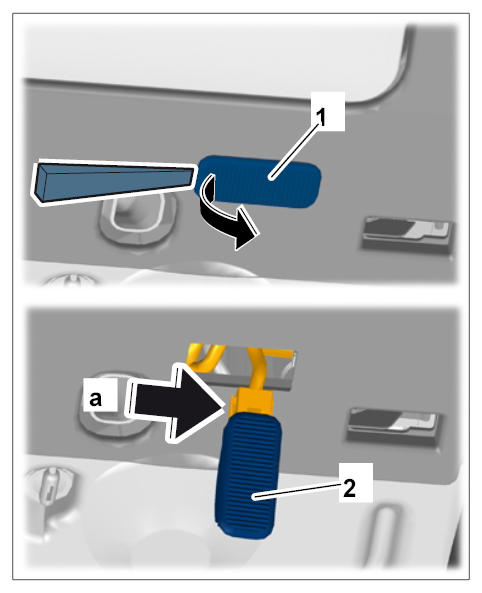

    Fig 1: Removing Footwell Light
    G09941943Courtesy of PORSCHE CARS NORTH AMERICA, INC.
