Disconnecting The Battery: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Static battery charge
- Battery can explode
- Electrical discharges
→ Do not rub the battery with a dry cloth.
Information
Switch off all loads and remove the ignition key.
- Do not disconnect the battery while the engine is running .
- Disconnect and reconnect battery with extreme caution .
- Do not rub the battery with a dry cloth .
Information
The battery is located under the driver's seat.
- Detach and fold over carpet in front of the driver's seat. → 704119 REMOVING AND INSTALLING CARPET
- Screw off ground strap at the ground point in front of the driver's seat:

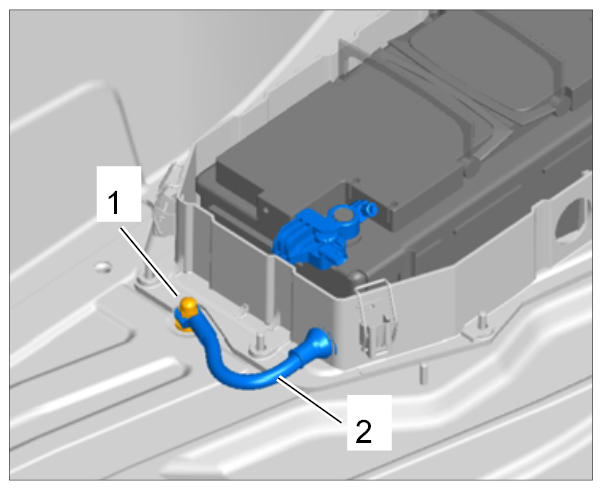

- Risk of short circuit! Screw off the ground strap -2- at the ground point -1- under the driver's seat in front of the battery box.
- Route or isolate the ground strap -2- so that all contact with a ground carrier (e.g. body, battery terminal) is avoided.
