Performing Measurements 2

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work for measurement 2:

Remove side trim panel for rear luggage compartment at the left. → 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT
Release high-voltage connector for rear PTC from the high-voltage charger and disconnect it.
Release high-voltage connector for front PTC from the high-voltage charger and disconnect it.

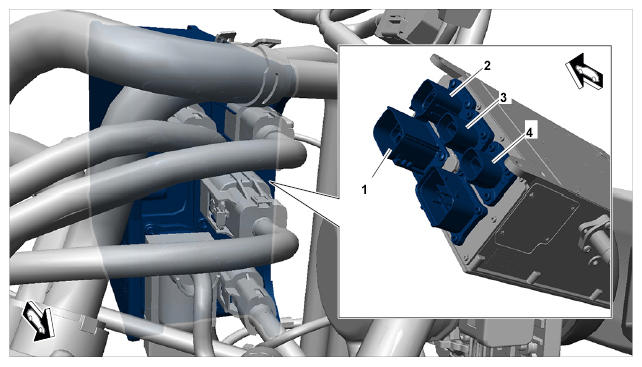

Fig 1: Overview Of High-Voltage Connections On High-Voltage Charger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. -1- = HV connection for rear PTC
2. -2- = HV connection for front PTC
3. -3- = HV connection for HV battery
4. -4- = HV connection for charging socket (3-phase)
Measurement 2.1:

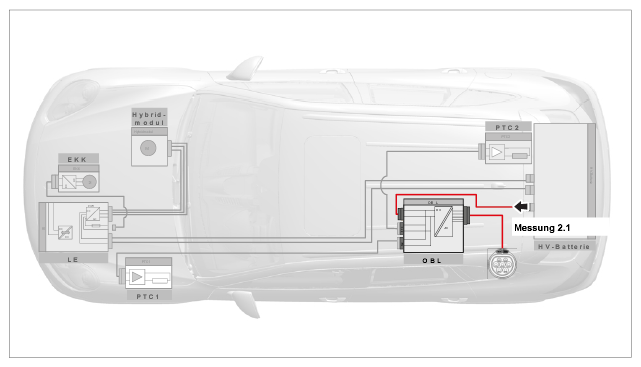

Fig 2: Overview Of Side Trim Panel For Rear Luggage Compartment (Measurement 2.1)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect high-voltage test adapter High-voltage test adapter HVR 40 WE 1586 to high-voltage connector for the high-voltage charger -1- . Leave the second connection on the test adapter open.

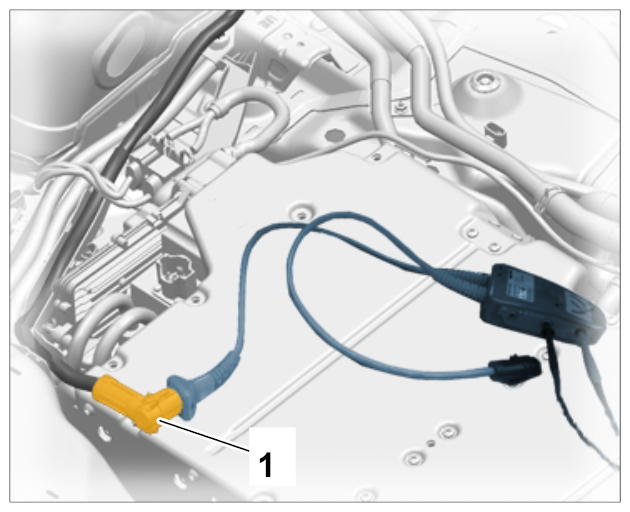

Fig 3: Identifying High-Voltage Test Adapter Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 2.1.
1. 5.1. Setpoint value: > 550 MOhm
Measurement 2.2:

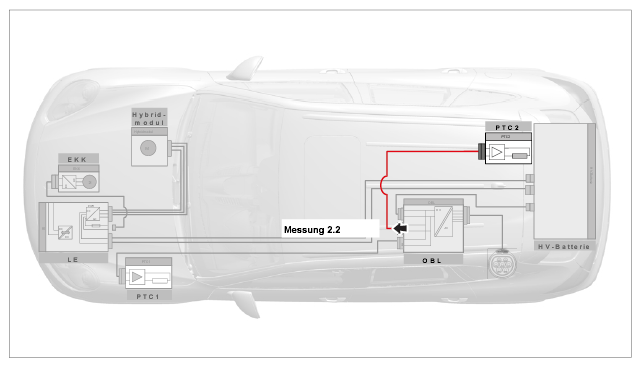

Fig 4: Overview Of Side Trim Panel For Rear Luggage Compartment (Measurement 2.2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585 to high-voltage connector for rear PTC -1- . Leave the second connection on the test adapter open.

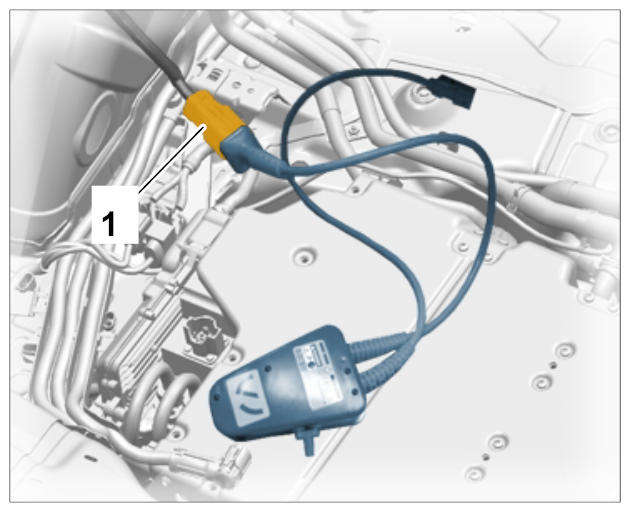

Fig 5: Identifying High-Voltage Test Adapter Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 2.2.
1. 7.1. Setpoint value: > 550 MOhm

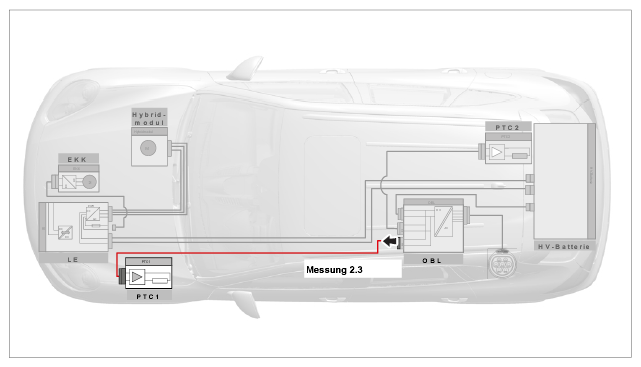

  Fig 6: Overview Of Side Trim Panel For Rear Luggage Compartment (Measurement 2.3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measurement 2.3:
Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585 to high-voltage connector for front PTC -1- . Leave the second connection on the test adapter open.

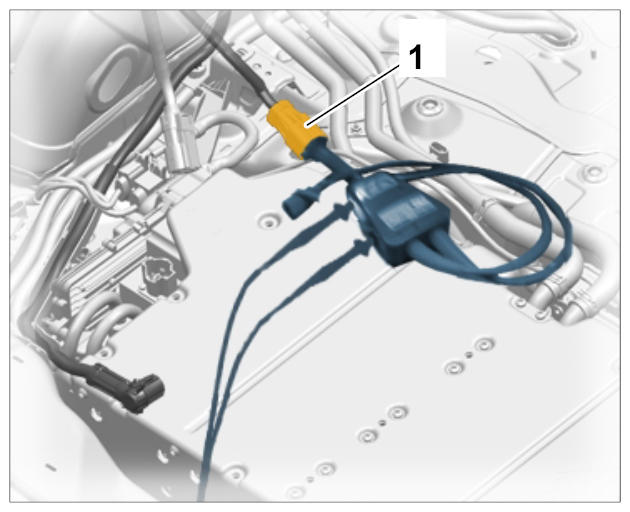

Fig 7: Identifying High-Voltage Test Adapter Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 2.3.
1. 9.1. Setpoint value: > 550 MOhm
Evaluate the test results .
1. 10.1. If the specified measured values from measurement 2.1 are not within the tolerance range and the specified measured values from measurement 2.2 and 2.3 are within the tolerance range, continue with measurement 3 .
2. 10.2. If the specified measured values from measurement 2.2 are not within the tolerance range and the specified measured values from measurement 2.1 and 2.3 are within the tolerance range, continue with measurement 4 .
3. 10.3. If the specified measured values from measurement 2.3 are not within the tolerance range and the specified measured values from measurement 2.1 and 2.2 are within the tolerance range, continue with measurement 5 .
4. 10.4. The measured values from two or all measurements are not within the tolerance range.
  1. 10.4.1. Repeat the measurements.
  2. 10.4.2. Check measuring equipment and repeat the measurements.
  3. 10.4.3. Follow both paths for measurement 2.1, 2.2 and measurement 2.3.
  4. 10.4.4. Contact Technical Support.
5. 10.5. The measured values from two or all measurements are within the tolerance range.
  1. 10.5.1. Repeat the measurements.
  2. 10.5.2. Check measuring equipment and repeat the measurements.
  3. 10.5.3. Contact Technical Support.
