Performing Measurement 9

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work for measurement 9:

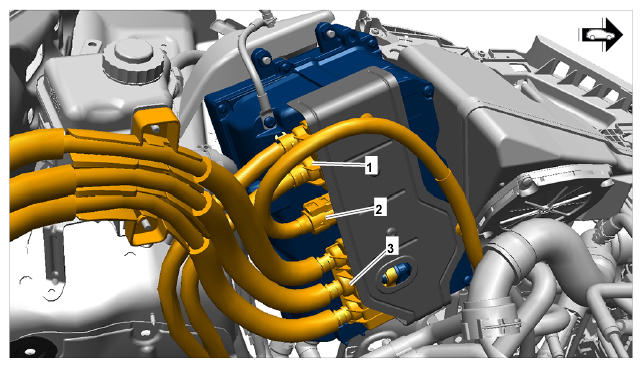

Fig 1: Overview Of High-Voltage Connections For Power Electronics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- = cable shoe on high-voltage line from PE to HV battery
-2- = 2 = HV connection from PE to air-conditioning compressor
-3- = 3-phase wiring to electric machine

Unscrew and remove 3-phase high-voltage line from power electronics unit. → 279119 REMOVING AND INSTALLING POWER ELECTRONICS FOR HIGH-VOLTAGE SYSTEM
Measurement 9.1:

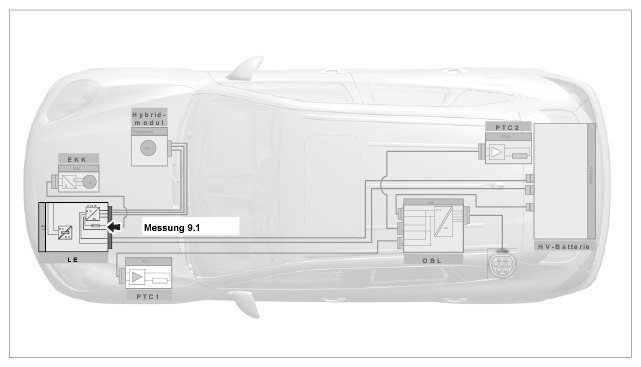

Fig 2: Overview Of Power Electronics Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585 to the power electronics unit. Leave the second connection on the test adapter open.

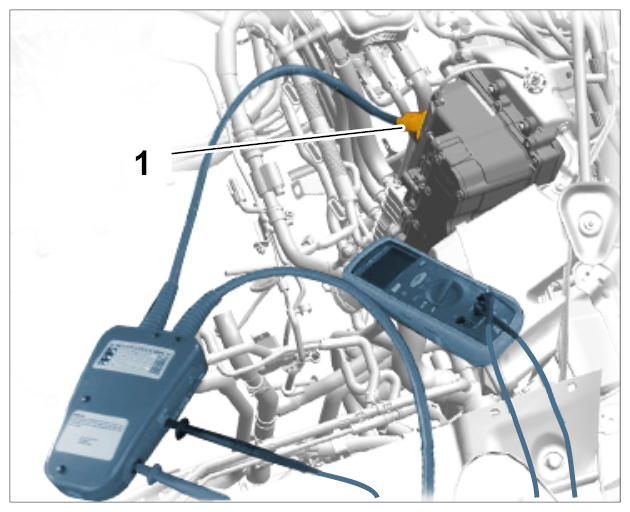

Fig 3: Connecting High-Voltage Test Adapter HVA 280 WE 1585 To Power Electronics Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 8.2.
1. 3.1. Setpoint value: > 2.4 MOhm
Measurement 9.2:

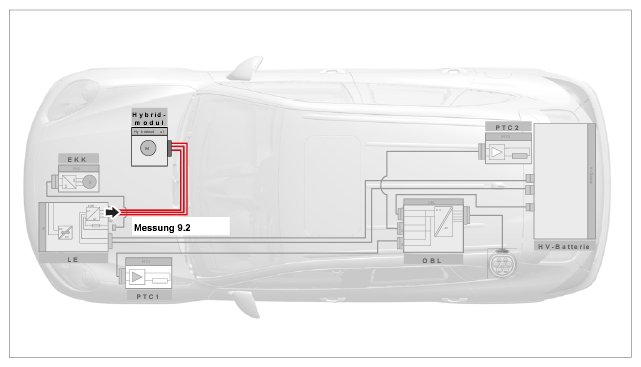

Fig 4: Overview Of Power Electronics Unit (Measurement 9.2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hold both measuring tips of the insulation tester WE 1379 at one of the three terminal shoes -1- and at the insulation -2- on the 3-phase high-voltage line.

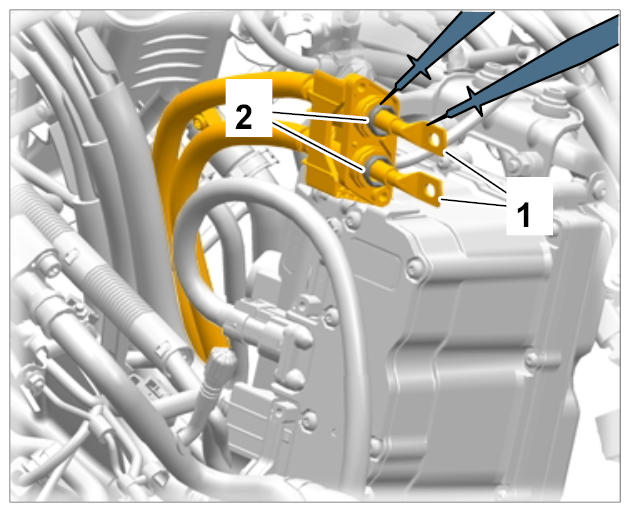

Fig 5: Measuring Insulation Resistance At Cable Shoes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 9.2.
1. 5.1. Setpoint value: > 550 MOhm
Evaluate the test results .
1. 6.1. If the specified measured values from measurement 9.1 are not within the tolerance range and the specified measured values from measurement 9.2 are within the tolerance range:
  1. 6.1.1. Insulation fault in power electronics.
  2. 6.1.2. Replace power electronics following consultation with Technical Support. → Installing Fuse For Power Electronics Unit
2. 6.2. If the specified measured values from measurement 9.2 are not within the tolerance range and the specified measured values from measurement 9.1 are within the tolerance range, continue with measurement 10 .
3. 6.3. The measured values from both measurements are not within the tolerance range.
  1. 6.3.1. Repeat the measurements.
  2. 6.3.2. Check measuring equipment and repeat the measurements.
  3. 6.3.3. Contact Technical Support.
4. 6.4. The measured values from both measurements are within the tolerance range.
  1. 6.4.1. Repeat the measurements.
  2. 6.4.2. Check measuring equipment and repeat the measurements.
  3. 6.4.3. Contact Technical Support.
