Performing Measurement 7

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work for measurement 7:

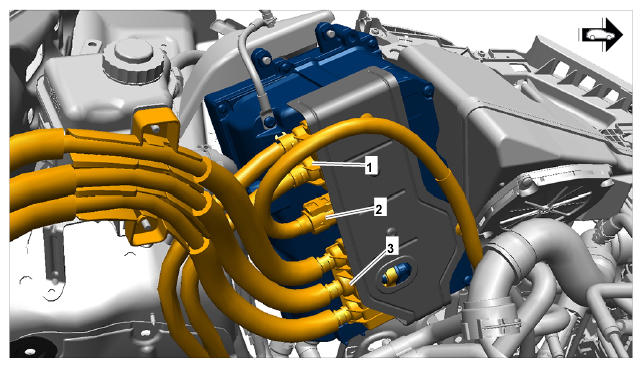

Fig 1: Overview Of High-Voltage Connections For Power Electronics
G09933155Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  = cable shoe on high-voltage line from PE to HV battery
  2. -2-  = 2 = HV connection from PE to air-conditioning compressor
  3. -3-  = 3-phase wiring to electric machine
  1. Disconnect high-voltage line from high-voltage air-conditioning compressor. → 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO AIR-CONDITIONING COMPRESSOR
  2. Remove front wheel housing liner trim panel at the left. → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
  3. Remove front underbody panelling. → 108019 REMOVING AND INSTALLING ENGINE GUARD

    Measurement 7.1:

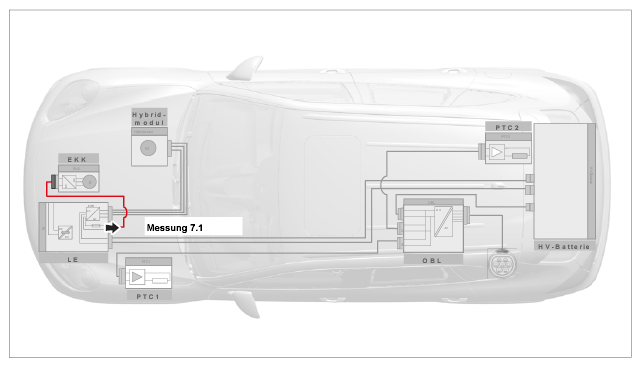

    Fig 2: Overview Front Wheel Housing Liner Trim Panel (Measurement 7.1)
    G09933156Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to high-voltage connector for high-voltage line for high-voltage air-conditioning compressor. Leave the second connection on the test adapter open.

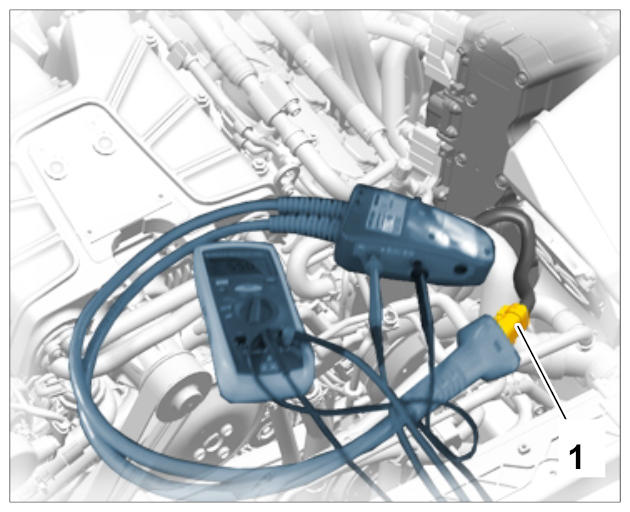

    Fig 3: Identifying High-Voltage Test Adapter
    G09933157Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Perform measurement 6.2.
    1. 5.1. Setpoint value: > 550 MOhm

    Measurement 7.2:

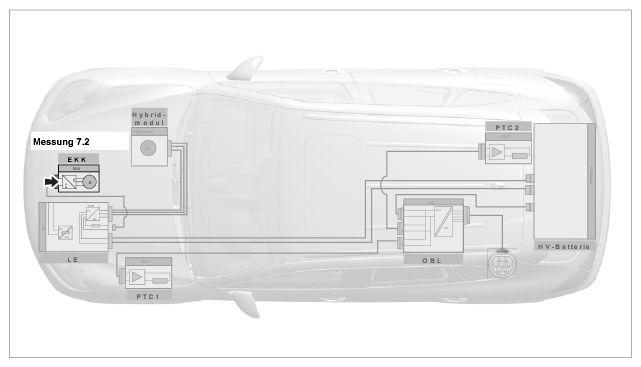

    Fig 4: Overview Front Wheel Housing Liner Trim Panel (Measurement 7.2)
    G09933158Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Connect high-voltage test adapter VAS 6558/1-3 from Hybrid test adapter set WE 1378  to the high-voltage air-conditioning compressor.

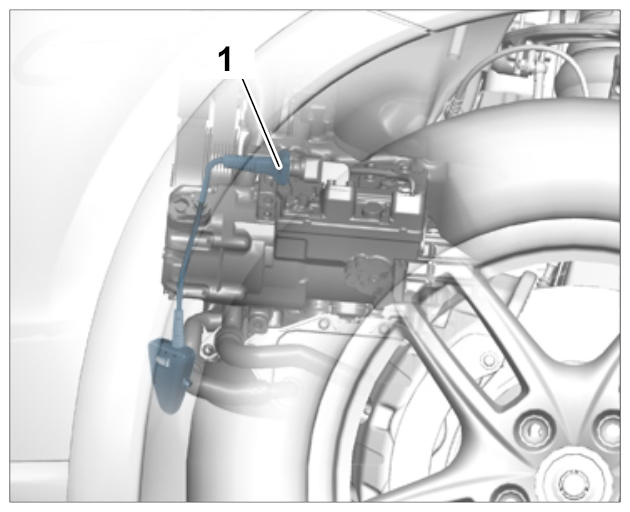

    Fig 5: Identifying High-Voltage Test Adapter VAS 6558/1-3 Connector
    G09933159Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Perform measurement 6.2.
    1. 7.1. Setpoint value: > 550 MOhm
  8. Evaluate the test results  .
    1. 8.1. If the specified measured values from measurement 7.1 are not within the tolerance range and the specified measured values from measurement 7.2 are within the tolerance range:
      1. 8.1.1. Insulation fault in high-voltage line from power electronics to air-conditioning compressor.
      2. 8.1.2. Replace high-voltage line from power electronics to air-conditioning compressor following consultation with Technical Support. → 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO AIR-CONDITIONING COMPRESSOR
    2. 8.2. If the specified measured values from measurement 7.2 are not within the tolerance range and the specified measured values from measurement 7.1 are within the tolerance range:
      1. 8.2.1. Insulation fault in high-voltage air-conditioning compressor.
      2. 8.2.2. Replace high-voltage air-conditioning compressor following consultation with Technical Support. → Installing Electric Air-Conditioning Compressor
    3. 8.3. The measured values from both measurements are not within  the tolerance range.
      1. 8.3.1. Repeat the measurements.
      2. 8.3.2. Check measuring equipment and repeat the measurements.
      3. 8.3.3. Contact Technical Support.
    4. 8.4. The measured values from both measurements are within  the tolerance range.
      1. 8.4.1. Repeat the measurements.
      2. 8.4.2. Check measuring equipment and repeat the measurements.
      3. 8.4.3. Contact Technical Support.
