Performing Measurement 6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work for measurement 6:

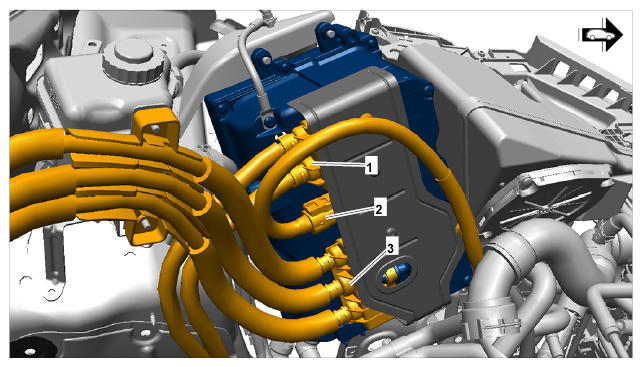

Fig 1: Overview Of High-Voltage Connections For Power Electronics

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- = cable shoe on high-voltage line from PE to HV battery
-2- = 2 = HV connection from PE to air-conditioning compressor
-3- = 3-phase wiring to electric machine

Unscrew both high-voltage connectors for high-voltage line to power electronics from the high-voltage battery and disconnect them. → 270819 REMOVING AND INSTALLING HIGH-VOLTAGE BATTERY
Unscrew media shield from the power electronics unit. → 279119 REMOVING AND INSTALLING POWER ELECTRONICS FOR HIGH-VOLTAGE SYSTEM
Release high-voltage connector from high-voltage air-conditioning compressor and disconnect it. → 279119 REMOVING AND INSTALLING POWER ELECTRONICS FOR HIGH-VOLTAGE SYSTEM
Measurement 6.1:

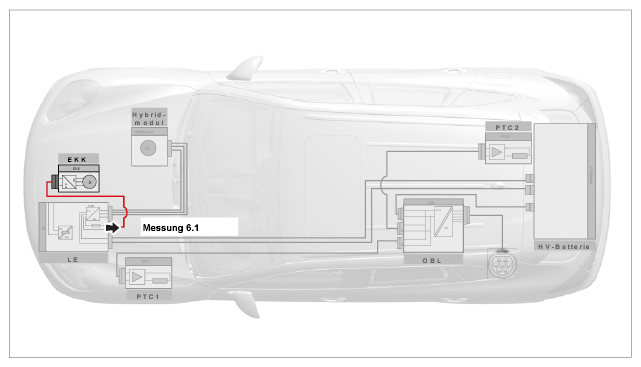

Fig 2: Overview Of Media Shield From Power Electronics Unit (Measurement 6.1)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585 to high-voltage connector for high-voltage line for high-voltage air-conditioning compressor -1- . Leave the second connection on the test adapter open.

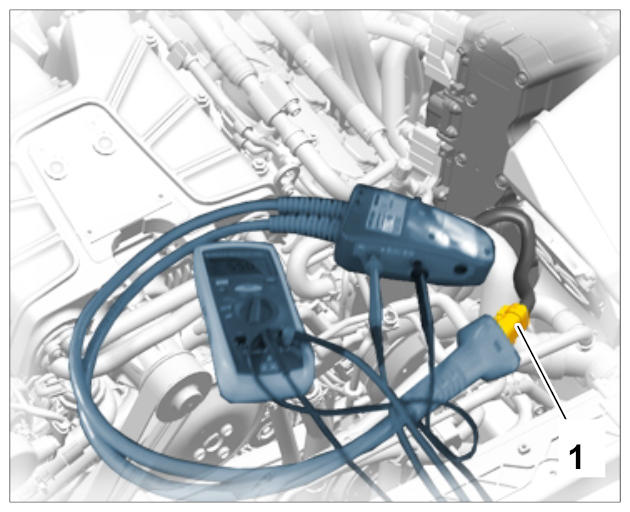

Fig 3: Identifying High-Voltage Test Adapter Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 6.1.
1. 5.1. Setpoint value: > 550 MOhm
Measurement 6.2:

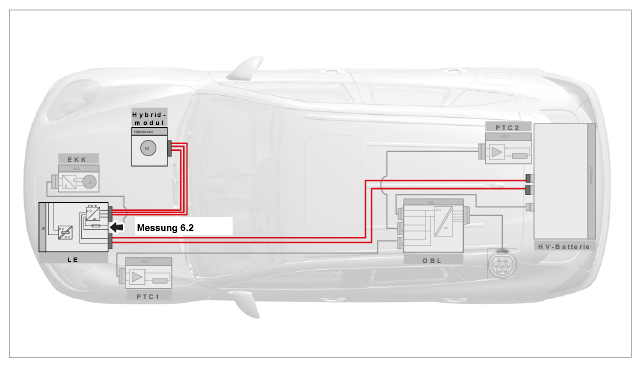

Fig 4: Overview Of Media Shield From Power Electronics Unit (Measurement 6.2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585 to the power electronics unit (high-voltage connection for air-conditioning compressor) -1- . Leave the second connection on the test adapter open.

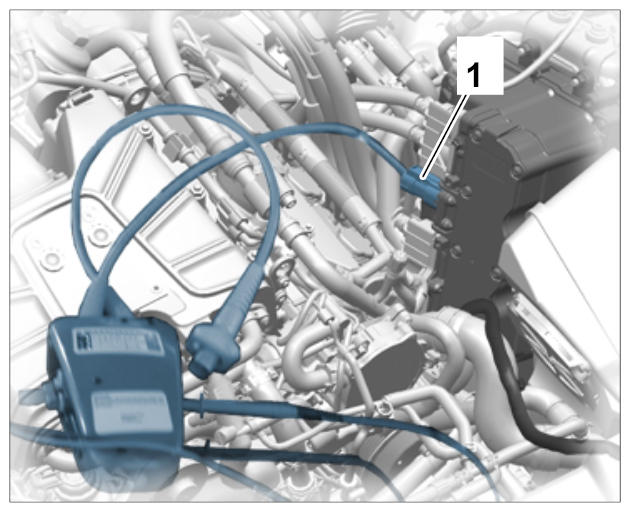

Fig 5: Identifying High-Voltage Test Adapter Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform measurement 6.2.
1. 7.1. Setpoint value: 2.9 MOhm
Evaluate the test results .
1. 8.1. If the specified measured values from measurement 6.1 are not within the tolerance range and the specified measured values from measurement 6.2 and 6.3 are within the tolerance range:
  1. 8.1.1. Insulation fault in high-voltage battery.
  2. 8.1.2. Replace high-voltage battery following consultation with Technical Support. → 270855 REPLACING HIGH-VOLTAGE BATTERY
2. 8.2. If the specified measured values from measurement 6.2 are not within the tolerance range and the specified measured values from measurement 6.1 and 6.3 are within the tolerance range, continue with measurement 7 .
3. 8.3. If the specified measured values from measurement 6.3 are not within the tolerance range and the specified measured values from measurement 6.1 and 6.2 are within the tolerance range, continue with measurement 8 .
4. 8.4. The measured values from two or all measurements are not within the tolerance range.
  1. 8.4.1. Repeat the measurements.
  2. 8.4.2. Check measuring equipment and repeat the measurements.
  3. 8.4.3. Follow both paths for measurement 6.2 and measurement 6.3.
  4. 8.4.4. Contact Technical Support.
5. 8.5. The measured values from two or all measurements are within the tolerance range.
  1. 8.5.1. Repeat the measurements.
  2. 8.5.2. Check measuring equipment and repeat the measurements.
  3. 8.5.3. Contact Technical Support.
