Removing Brake Shoes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

It is not necessary to grind down the parking-brake shoes if the parking-brake shoes are not replaced.

Set the brake shoes to the basic setting if necessary and calibrate the brakes → WM 468316 ADJUSTING AND CALIBRATING BRAKE SHOES .

Mark the parking-brake shoes and adjustment device according to their installation position .
Secure the adjustment device to prevent it from turning .

Brake Shoes
Adjustment Device
Compression Springs
Tension Springs

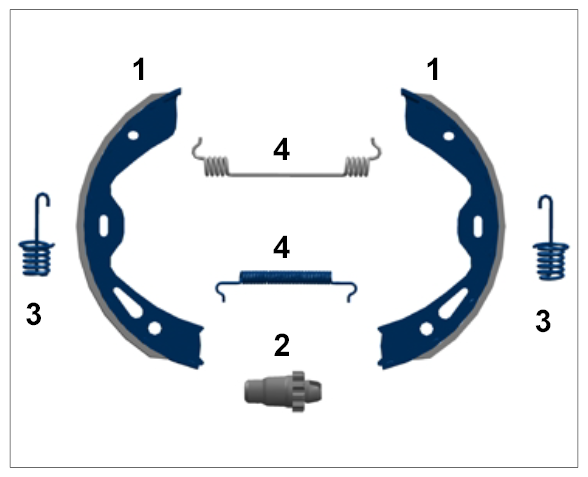

Fig 1: Component Overview Of Parking Brake
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

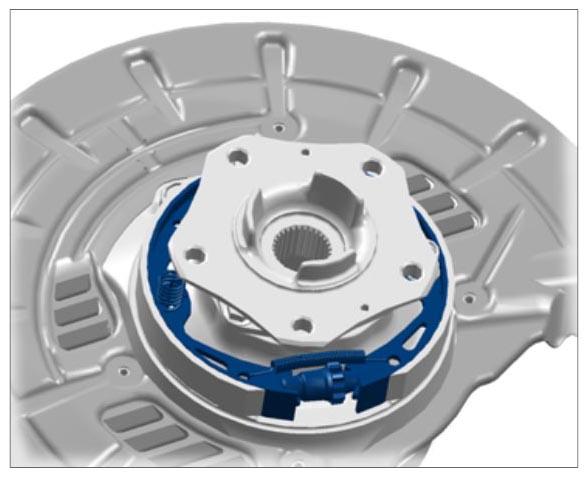

Loosen adjustment device -2- with a screwdriver. → Adjustment device

Fig 2: Identifying Adjustment Device
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Wear protective gloves and goggles.

→ Be very careful when working on the brake system.

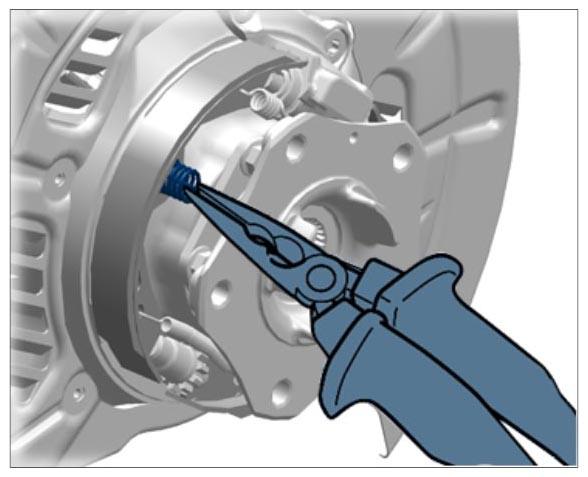

Remove compression springs -3- . → Compression springs

Fig 3: Compressing Brake System Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

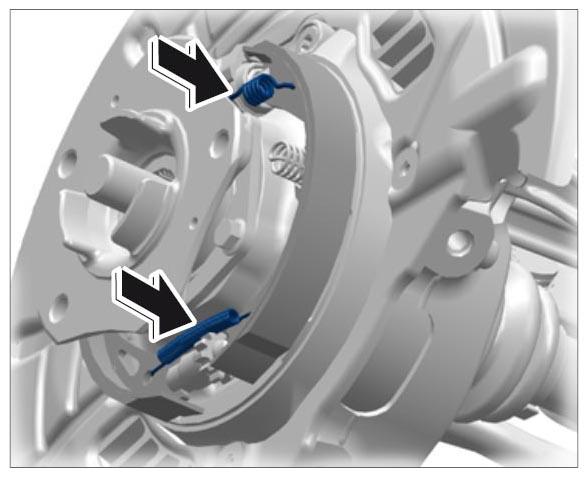

Disengage both tension springs -4- . → Tension springs

Fig 4: Locating Brake System Tension Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove brake shoes with adjustment device -1 and 2- .

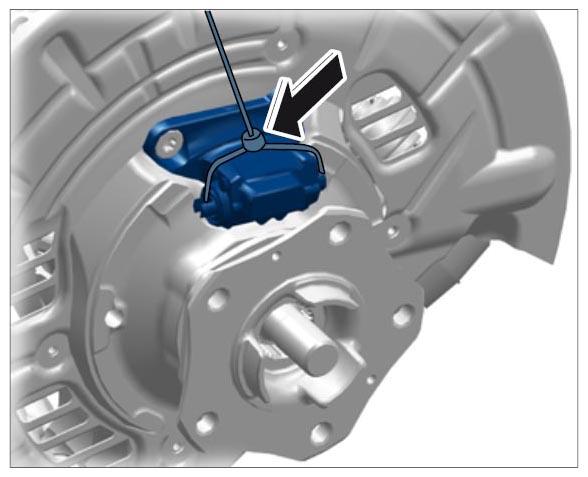

Secure actuator for parking brake with a tie-wrap -arrow- .

Fig 5: Securing Actuator For Parking Brake With Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
