Installing Brake Shoes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Brake Shoes
Adjustment Device
Compression Springs
Tension Springs

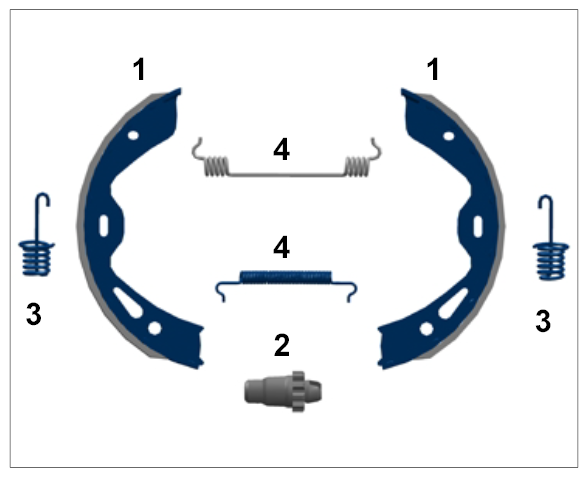

Fig 1: Component Overview Of Parking Brake
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation is performed in reverse order.

Align the entire unit in the middle.

Remove tie-wrap at actuator for parking brake.
Insert brake shoes with adjustment device -1 and 2- .
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Wear protective gloves and goggles.

→ Be very careful when working on the brake system.
Engage both tension springs -4- .
Install compression springs -3- and plug in speed sensor connector again.
