Installing Actuator For Electric Parking Brake
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

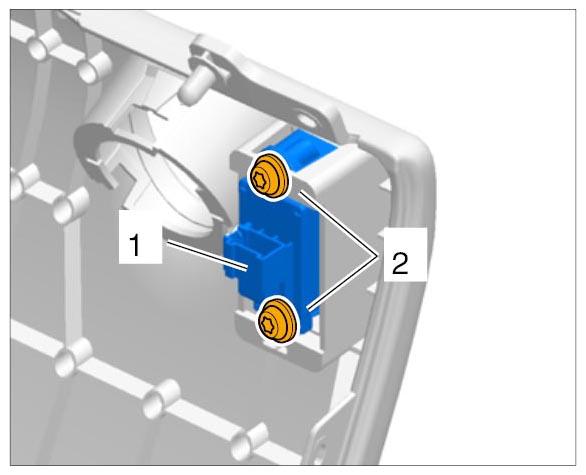

- Fit actuator for electric parking brake -1- and tighten two fastening screws -2- to → Tightening Torque: 2 Nm (1.5 ft. lb.) .
- Carry out a function test.
- The indicator light in the parking brake actuator must be ON when you close it.
- The indicator light in the parking brake actuator must be OFF when you open it.
- Check for locking and release noises from the electric parking brake actuators when you actuate them.
