Removing Actuator For Electric Parking Brake

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

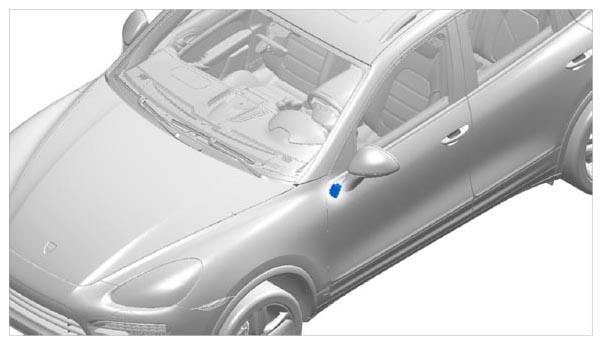

Fig 1: Identifying Electric Parking Brake Actuator Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew two fastening screws -2- and remove actuator for electric parking brake -1- .

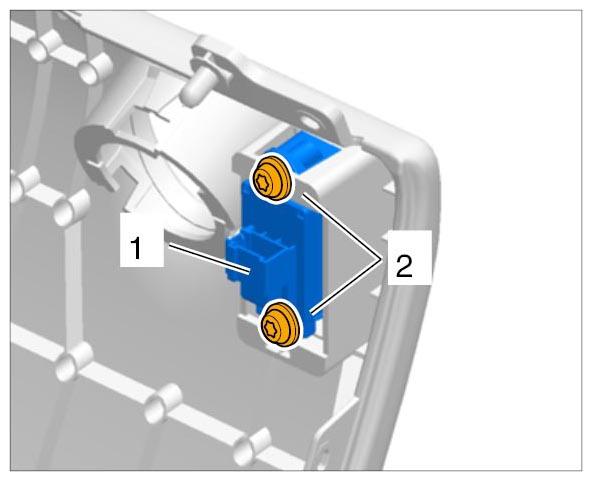

Fig 2: Identifying Electric Parking Brake Actuator Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
