Removing And Installing Rear Brake Disc (PCCB)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removing/fitting wheels

Risk of damage to (ceramic) brake discs

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

PIWIS Tester II 9818 must be connected and started.
1. 1.1. Select parking brake.
2. 1.2. Select Maintenance/repair.
3. 1.3. Move to installation position.

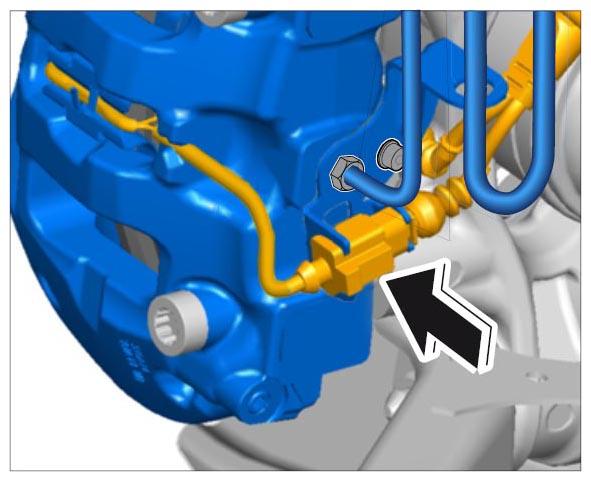

Release and unclip connector for the brake pad wear indicator and remove it from the holder -arrow- .

Fig 1: Removing Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Removal of brake calliper
- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.

→ Protect brake calliper from paint defects using a suitable cloth.
Set the brake pads back slightly and evenly using water pump pliers.

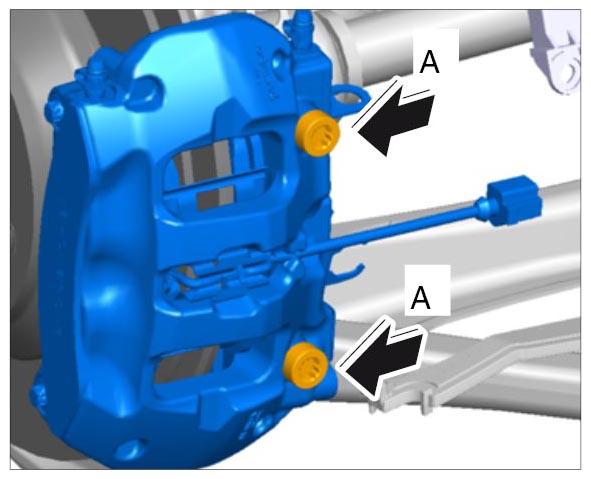

Detach the brake calliper on the wheel carrier and suspend it at a suitable place in the wheel housing or set it down carefully (do not open the brake hydraulic system!).
→ 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER (PCCB)

Fig 2: Removing Brake Calliper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

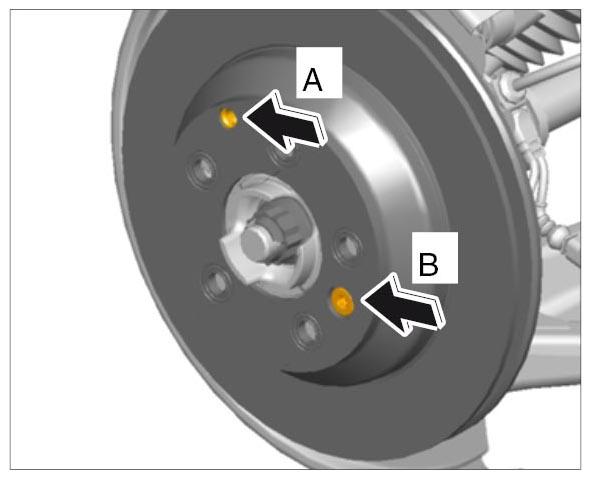

Unscrew fastening screw -B- and remove brake disc.

Fig 3: Locating Brake Disc Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
