General Information On PCCB Brake Discs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The brake discs have wear indicator plates in the friction surfaces. The wear indicator plates (six on each brake disc) are arranged close to the outer diameter, offset by 120 ° -arrows- at three points. The three wear indicator plates on each friction surface (3 on the inside and 3 on the outside) are positioned directly opposite each other. Each wear indicator is approx. 2 cm² . The wear indicators are barely visible on new brake discs.

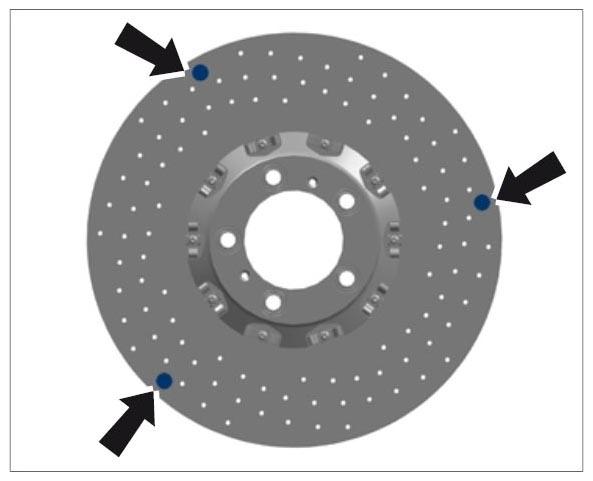

Fig 1: Locating PCCB Brake Discs Wear Indicators

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The minimum brake disc thickness (wear dimension) is stamped on the brake-disc chamber (e.g. Min. Th. 29.7 mm).
