Coating On The PCCB Brake Discs (Possible Causes)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The coating on the PCCB brake discs arises as a result of a high load and high temperatures, for example on a racing circuit. Check the following in such cases:

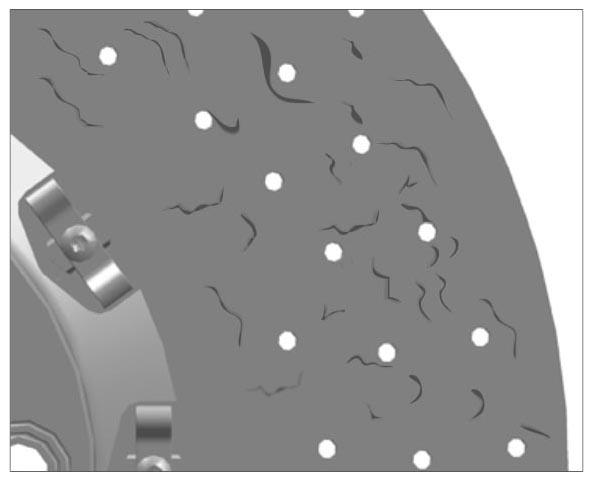

Fig 1: Identifying Coating On The PCCB Brake Discs

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ventilation (brake cooling): All components are present, secured correctly and undamaged.
Brake pad quality: If the vehicle is used for race-track driving, use appropriate brake pads.
The perforation bores → Bores (perforations) in brake disc friction surface in the brake discs must not be blocked.

Unblock them if necessary. → 465402 CHECKING REAR PCCB BRAKE DISC (WEAR ASSESSMENT) - section on "Information".

In the event of brake pad wear, the brake discs can still be used provided the brake discs satisfy all wear criteria → 465402 CHECKING REAR PCCB BRAKE DISC (WEAR ASSESSMENT) - section on "Information". The perforation bores → Bores (perforations) in brake disc friction surface must not be blocked.
