Checking Rear Brake Discs (Evaluating Cracks): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Different vehicle types have different brake disc sizes. This results in differences in terms of maximum crack length limits.

Maximum crack length limit is calculated as follows:

0.5 x a (-a- = width of friction surface in mm).

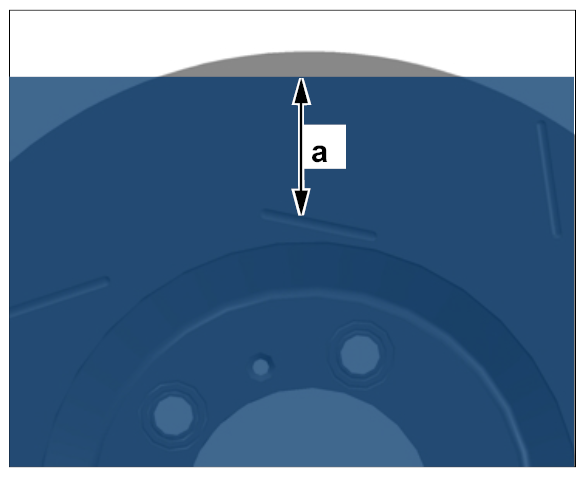

Fig 1: Identifying Rear Brake Discs Friction Surface Width

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The length of a crack can be measured with a steel rule, for example. → Brake discs

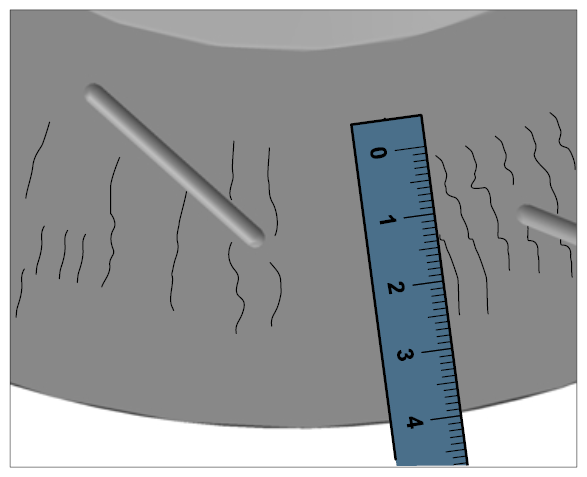

Fig 2: Measuring Rear Brake Discs Friction Surface Cracks

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Irrespective of the crack length, the brake disc must be replaced if the crack has extended as far as the outer and/or inner edge of the disc.

As a precaution, brake discs must be replaced when:

the → Maximum Crack Length: 0.5 x a mm (a = friction surface width in mm) is exceeded!
the → Maximum Crack Width: 1 mm is exceeded!
the → Maximum Crack Depth: 1.5 mm is exceeded!
