Installing Rear Disc Brake Pads

→ Only use the type-specific brake pads listed .

→ Replace the brake pads when the brake pad wear indicator light comes on, but no later than when there is a residual pad thickness of 2 mm on each axle.

→ Replace the brake discs on each axle as soon as the brake pad wear limit is reached.

→ Fit new pad retaining springs

→ Fit new fastening screws

Information

• The back of the pad backing plates must not be greased  .
• Check disc brakes for wear. For details of wear limits  see → 465302 CHECKING REAR BRAKE DISCS (WEAR ASSESSMENT) .
• Disc brakes must be clean and free of grease  .
• The core of the warning contact wire must not be left exposed! It does not matter if the insulation is worn  .
• If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back  .
• Use new repair kit  .
• Observe correct Tightening Torques  → 4X00IN TIGHTENING TORQUES FOR THE BRAKE HYDRAULIC SYSTEM .

Installation is performed in reverse order.

1. Fit new pad retaining springs.
2. Place the disc brake pad onto the sealing surfaces of the pad retaining springs.

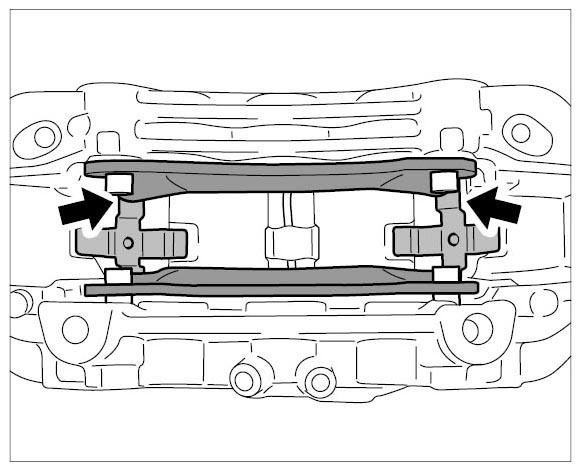

   Fig 1: Fitting Brake Pad

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press the brake pad into the brake calliper with slight pressure and slide it onto the pad retaining pins. -arrows-

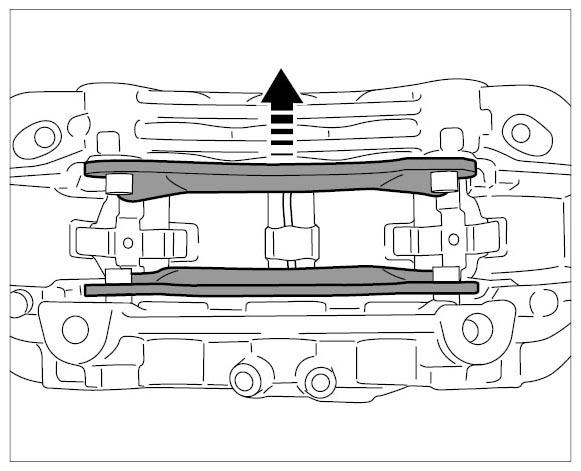

   Fig 2: Locating Front Axle Brake Pad

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit the disc brake pad. -direction arrow-

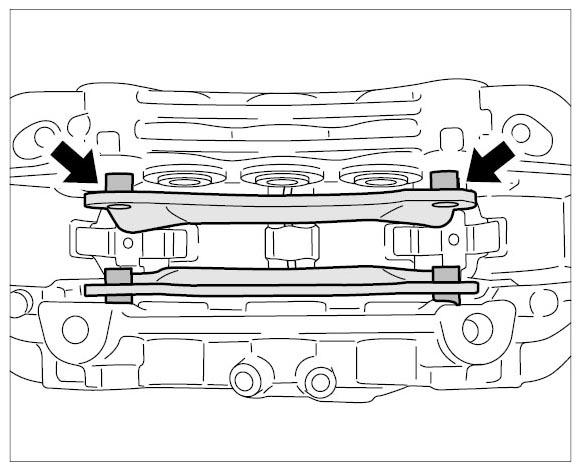

   Fig 3: Fitting Front Axle Brake Pad

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit the brake calliper and check that the brake hose is routed correctly (do not twist the brake hose!).

   → 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER (PCCB)

6. Position disc brake pads by operating the brake several times.
7. Check the brake fluid level and correct it if necessary.
