Removing Front Brake Pads

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removing/fitting wheels

Risk of damage to (ceramic) brake discs

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Expose lines.
Information
- To gain better access for removal of the brake calliper, turn the steering fully either to the right or left .
1. 1.1. Remove fastening screws -1, 2- for holders -3, 4- for the brake hydraulic lines.

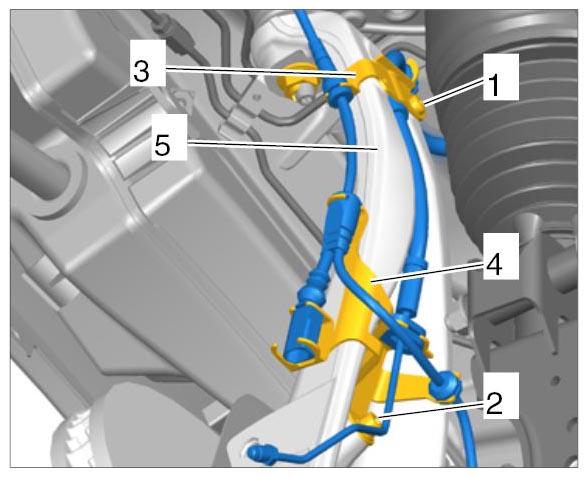

  Fig 1: Identifying Hydraulic Line Holders
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Pull the brake pad wear indicator line out of the brake calliper.
3. 1.3. Disconnect plug connection for speed sensor.
Information

Protect the paintwork on the brake calliper from damage using a suitable cloth.
Carefully press the brake pads back using water pump pliers. Remove a little brake fluid from the reservoir by suction if necessary in order to prevent an overflow!
Information
- Do not open the brake system .
- Do not loosen the brake hose from the brake calliper when loosening the brake calliper .
- The core of the warning contact wire must not be left exposed! It does not matter if the insulation is worn .
- If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back .
Partially remove brake calliper. Use removal/installation aid for brake calliper Assembly Pin T10439 .

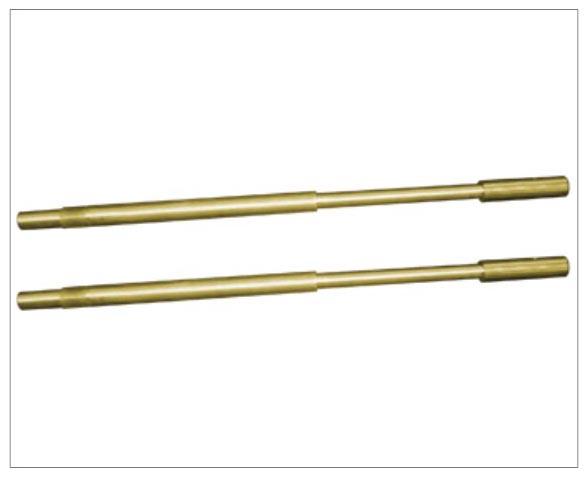

Fig 2: Identifying Assembly Pin For Brake Calliper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier .
1. 3.1. Remove upper fastening screw on the brake calliper -arrow- and insert Assembly Pin.

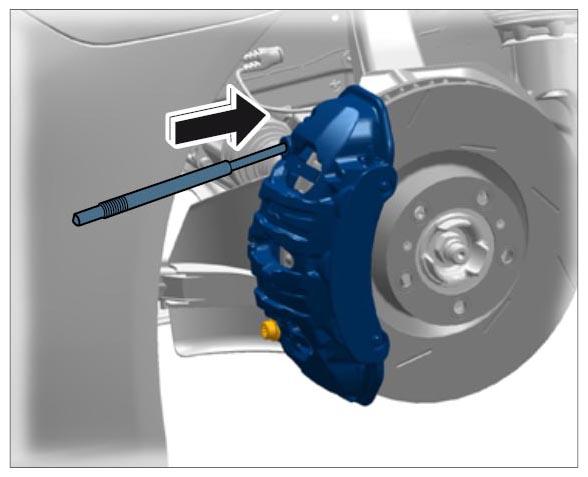

  Fig 3: Inserting Upper Assembly Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Remove lower fastening screw on the brake calliper -arrow- and insert Assembly Pin.

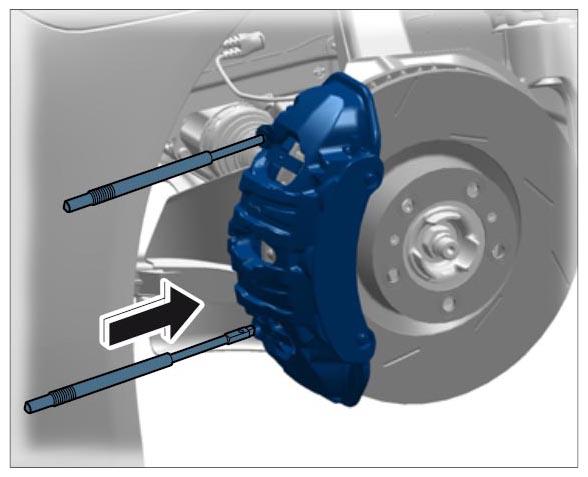

  Fig 4: Inserting Lower Assembly Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Pull the brake calliper as far as required out of installation position until the brake calliper engages in the cut-outs on the Assembly Pins → Brake calliper tool fitted . Carefully guide brake line and brake hose along with calliper in the process.

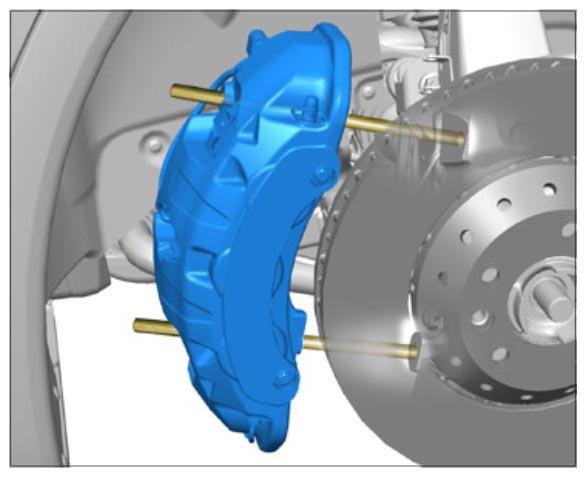

  Fig 5: Identifying Brake Calliper Tool Fitted
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the brake piston between the disc brake pads on the brake calliper using Piston Reset Tool (Replaces P83) Nr. 144 , and press the pads back evenly → Pressing back brake pads . Remove a little brake fluid from the reservoir by suction if necessary in order to prevent an overflow!

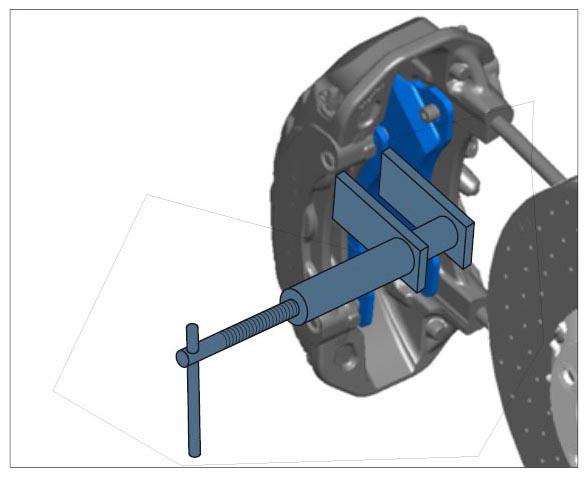

Fig 6: Pressing Back Brake Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If You Intend To Re-Use The Brake Pads, Mark The Relevant Installation Position! Carefully slide a commercially available screwdriver between the brake pad/brake calliper and lever the brake pad out by turning the screwdriver slightly. When doing this, make sure not to damage the dust boots on the brake pistons -arrows- .

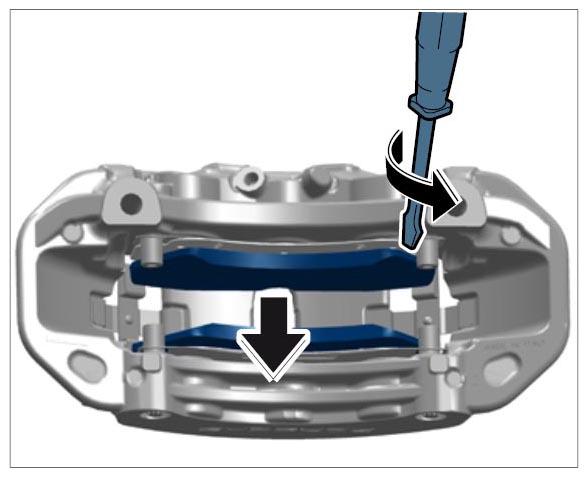

Fig 7: Removing Brake Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove pad retaining springs.
