Removing Brake Pedal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original .

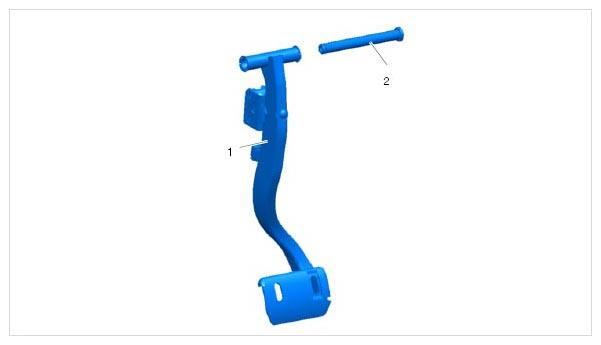

Fig 1: Identifying Brake Pedal And Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake pedal
Brake pedal shaft

Disengage brake push rod from the brake pedal mounting using Release Tool T10189 . Observe the following procedure for this purpose:

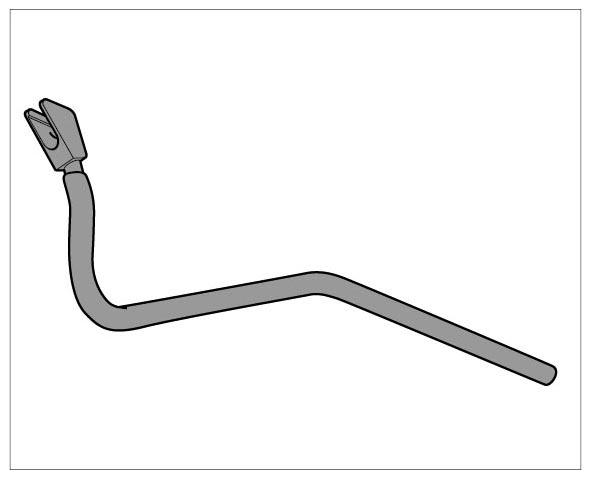

Fig 2: Identifying Release Tool T10189
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Identifying Brake Pedal Release Tool
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

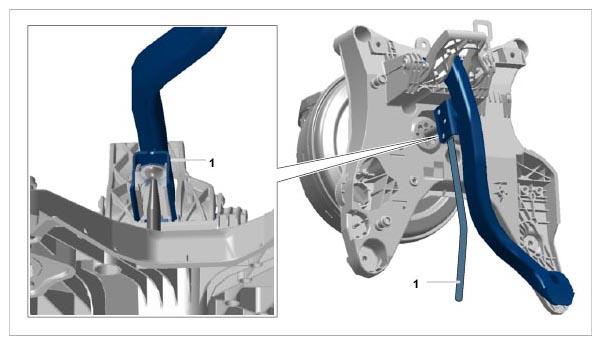

1. 1.1. Release Tool T10189 -1- must be positioned in such a way that the fork is at the correct position in the brake pedal mounting (inset shows fork engaged; view looking away from direction of travel).
2. 1.2. Release Tool T10189 must be positioned in such a way that it is located in the right mold of the support and is perpendicular to the vehicle floor. Deflection point of force (bend in the release tool T10189) is right over the recess in the mounting saddle -arrow- .

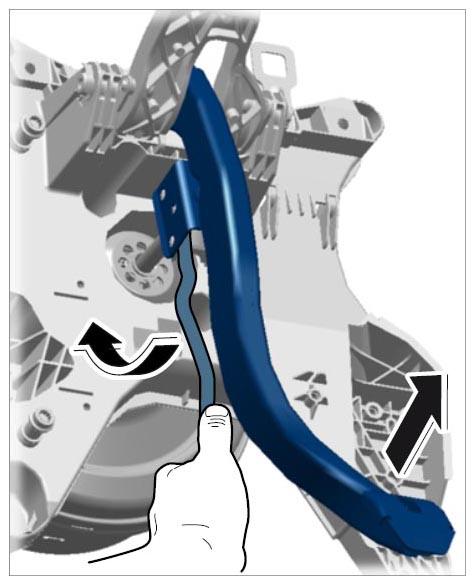

  Fig 4: Levering Out Brake Pedal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. When pressing Release Tool T10189 in direction of travel, the brake pedal mounting is pressed apart and the ball of the push rod is released. At the same time, pull the brake pedal away from the direction of travel and release the brake pedal from the push rod.

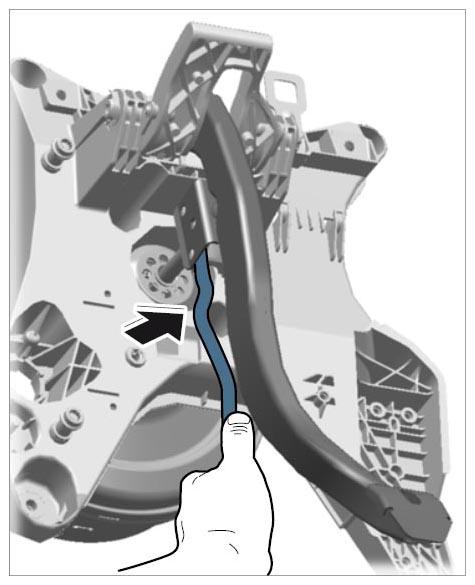

  Fig 5: Releasing Push Rod From Brake Pedal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

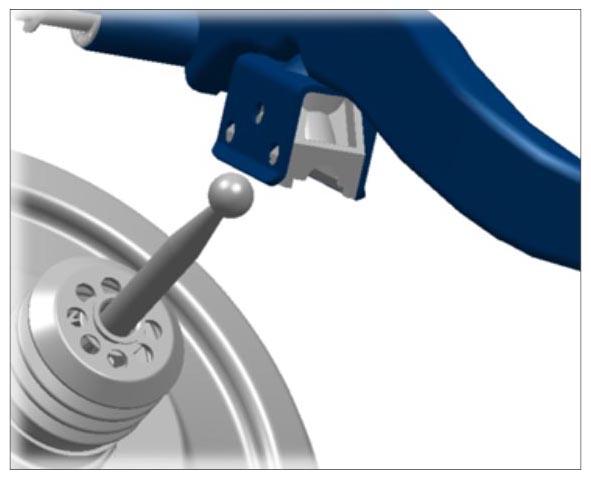

  Fig 6: Identifying Push Rod
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

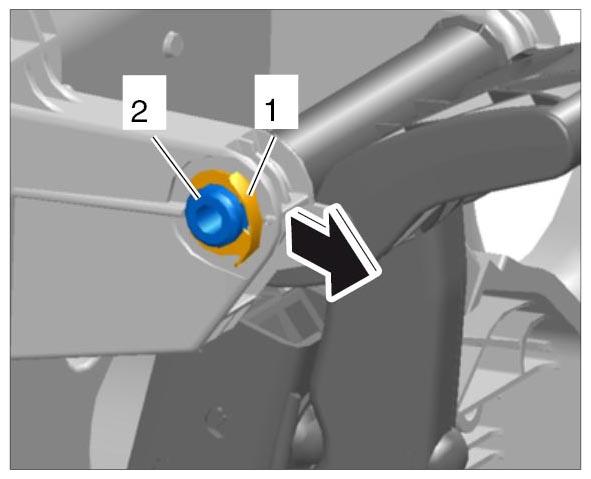

Pull out the lock -1- at the left of the brake pedal shaft -2- (-arrow- ).

Fig 7: Removing Brake Pedal Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

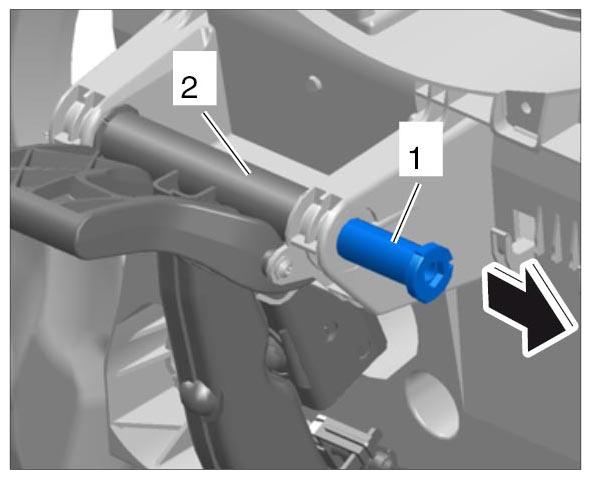

Using a hammer, press the brake pedal shaft -2- out by a few millimetres with short blows from left to right.
Insert a screwdriver under the head of the brake pedal shaft -1- (right side). Carefully lever the brake pedal shaft -1- towards the centre of the vehicle (cardan tunnel) and out of the brake pedal -2- (-arrow- ).

Fig 8: Pressing Out Brake Pedal Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
