Installing Hydraulic Pump (PDCC)

Information

• The reservoir must always be replaced if individual or multiple components, such as the hydraulic pump (tandem hydraulic pump) and steering, are replaced.
• The hydraulic system must be bled after repair work is carried out. The vehicle must be lowered onto the wheels for this. →  4890IN TEST AND ASSEMBLY WORK ON POWER STEERING
• Only use Pentonsin CHF 202 to fill the hydraulic system.
• Check the hydraulic fluid level.
• Replace sealing rings.
• Observe correct tightening torques. →  4X00IN TIGHTENING TORQUES FOR STEERING

Information

• Make sure not to damage the radiator grilles.

1. Carefully fit the hydraulic pump from the side.

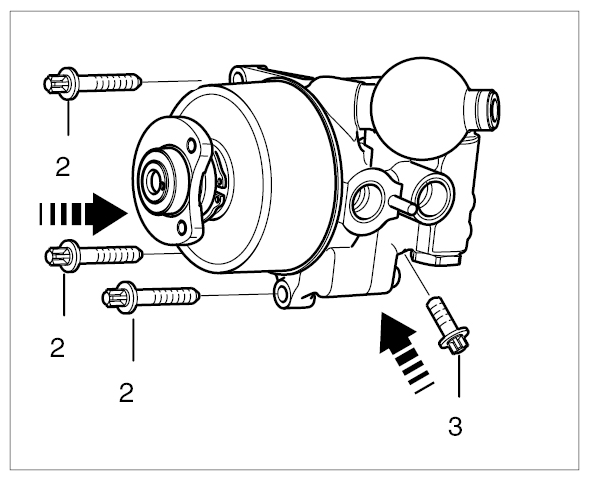

2. Carefully fit the three fastening screws -2-  at the front and the fastening screw -3-  at the side of the hydraulic pump and then tighten all screws to the specified tightening torque.
   Fig 1: Installing Hydraulic Pump

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

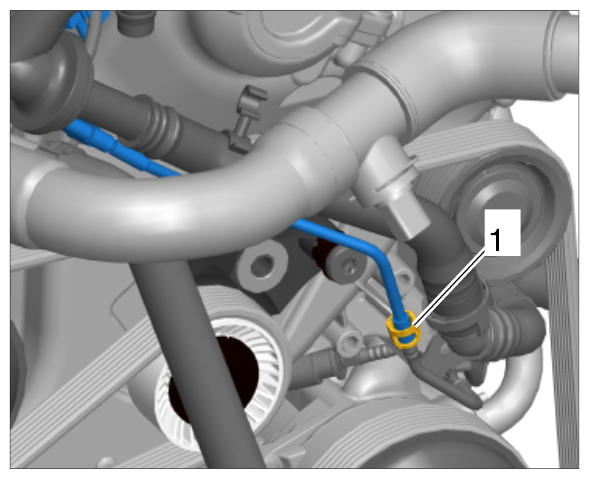

3. Replace the sealing ring -1-  on the lower pressure line -2-  .
   Fig 2: Identifying Sealing Ring On Pressure Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit the pressure lines to the hydraulic pump.
   Fig 3: Fitting Pressure Lines To Hydraulic Pump

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

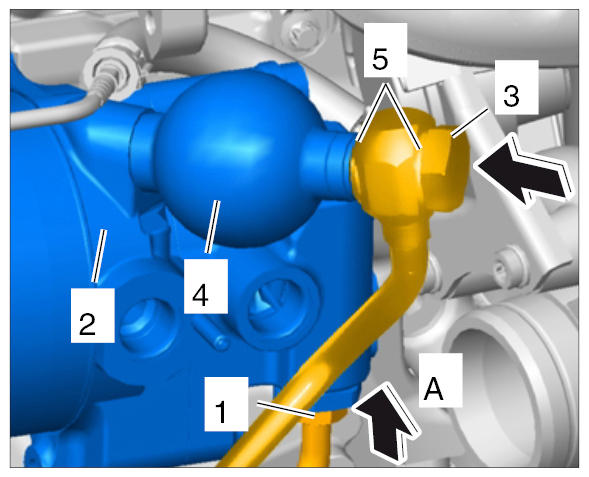

   1. 4.1. Insert the lower pressure line -1-  into the hydraulic pump -2-  and fit it -A-  .
   2. 4.2. Fit the upper pressure line to the pressure supply tank -4-  (-arrow-  ) and secure with the banjo bolt -3-  .

      Use new sealing washers -5-.

5. Replace sealing rings -1, 2-  on the intake pipes -3, 4-  .
   Fig 4: Identifying Sealing Rings On Intake Pipes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

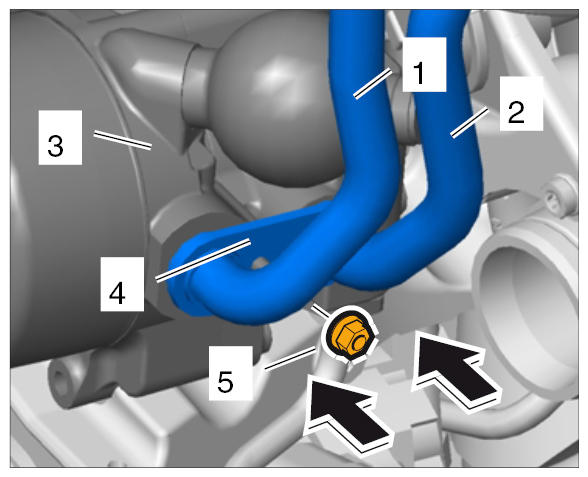

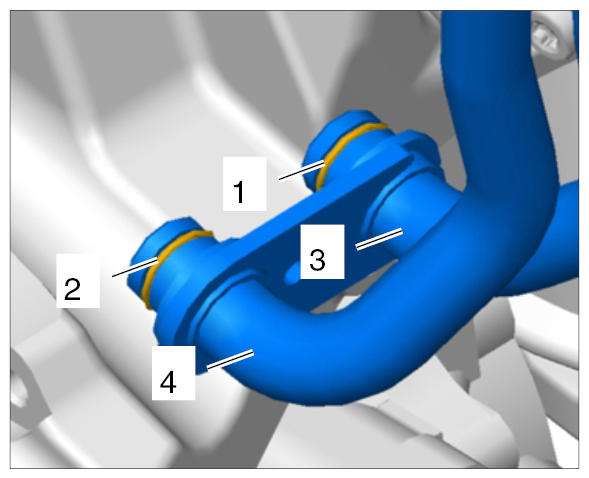

6. Insert the intake pipes -1, 2-  into the hydraulic pump -3-  (-arrows-  ), position the holder -4-  and screw on the fastening nut -5-  .
   Fig 5: Identifying Intake Pipes, Hydraulic Pump, Fastening Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

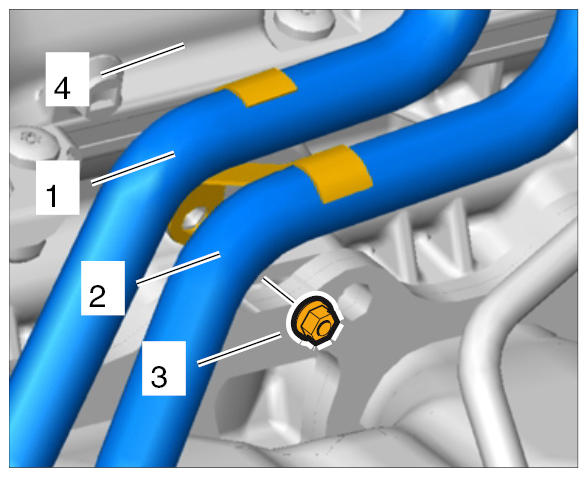

7. Fit the intake pipes -1, 2-  at the cylinder head -4-  using the holder and screw on the fastening nut -3-  .
   Fig 6: Identifying Intake Pipes At Cylinder Head

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Fit the pulley -2-  on the hydraulic pump -3-  and screw in the fastening screws -1-  .
   Fig 7: Identifying Pulley On Hydraulic Pump And Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Fit the drive belt at the correct position and tension it. → Installing Drive Belt
10. Fit the fastening screws -1-  on the pulley -2-  for the hydraulic pump -3-  .
11. Fit the intake manifold on the turbocharger.
12. Turbo only:

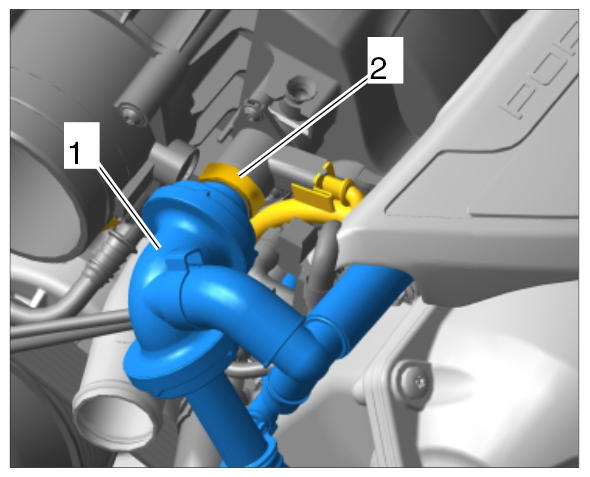

    Connect the wastegate line at the clamp -1-  .

    Fig 8: Identifying Wastegate Line At Clamps

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Turbo only:

    Attach the check valve -1-  to the air box and fit the clamp -2-  .

    Fig 9: Identifying Valve For Positive Crankcase Ventilation

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Turbo only:

    Attach hoses to the check valve and fit with new clamps.

15. Fit the lift switchover hose to the intake manifold.
