Removing Hydraulic Pump - Cayenne V6
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The engine does not have to be removed in order to remove and install the hydraulic pump.
- The hydraulic pump in the V6 engine is accessible from beneath.
Information
- Before removing the cover of the air cleaner box, the intake manifold must be disengaged from the air cleaner housing.
- Loosen the pulley on the hydraulic pump before removing the drive belt.
- Loosen pulley on hydraulic pump, but do not remove it.
- Slacken drive belt and remove from the pulley. → 137819 REMOVING AND INSTALLING DRIVE BELT
- Lift the vehicle. → 4X00IN LIFTING THE VEHICLE

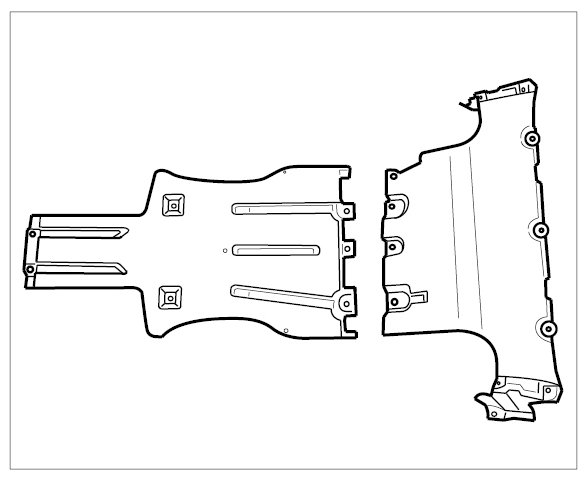

- Remove engine guard. → 108019 REMOVING AND INSTALLING ENGINE GUARD .
- Remove pulley.
- Remove both lines on the hydraulic pump (suction line, pressure pipe). Close the open connections with suitable plugs. Collect emerging hydraulic fluid in a suitable container.
- Remove hydraulic pump.
