Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The engine does not have to be removed in order to remove and install the hydraulic pump.
The hydraulic pump in the V6 engine is accessible from beneath.

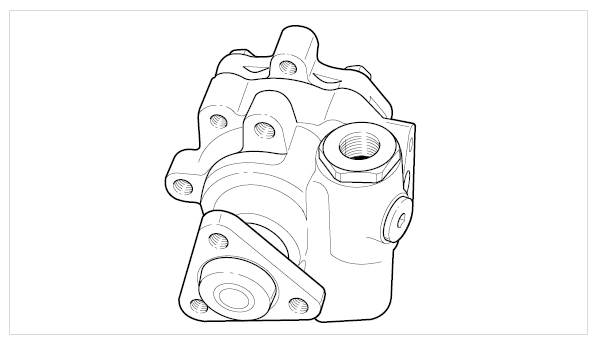

Fig 1: Identifying Hydraulic Pump (Pulley Removed)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the left engine compartment cover. → 700219 REMOVING AND INSTALLING FRONT TRIM (ENGINE COMPARTMENT)
Information
- Before removing the cover of the air cleaner box, the intake manifold must be disengaged from the air cleaner housing.
- Loosen the pulley on the hydraulic pump before removing the drive belt.
Disconnect the intake manifold at the air cleaner cover. To do this, turn the -pins 180°- and pull them out. Then set the intake manifold aside.

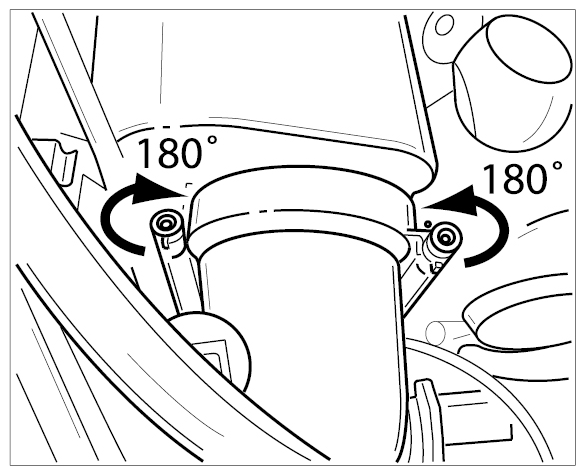

Fig 2: Disconnecting Intake Manifold At Air Cleaner Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air cleaner → 242455 REPLACING AIR-CLEANER ELEMENT .
