WM 489819 Removing And Installing Hydraulic Pump - 3.6 V6 (Cayenne Tip "Platinum Edition", Cayenne Tip, Cayenne Man): General

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The rack-and-pinion steering gear and power-steering pump must not be repaired or dismantled!
Always replace the O-rings on hydraulic lines!
Ensure absolute cleanliness at all times!
The steering system must be flushed after replacing individual or multiple components. Additional components must be replaced. → 489729 FLUSHING THE STEERING SYSTEM
The reservoirs must always be replaced if the hydraulic pump is replaced.
If system faults still occur after replacing a component (another component is faulty), the reservoir does not have to be replaced again.
Steel flexi-pipes must not be kinked or crushed.

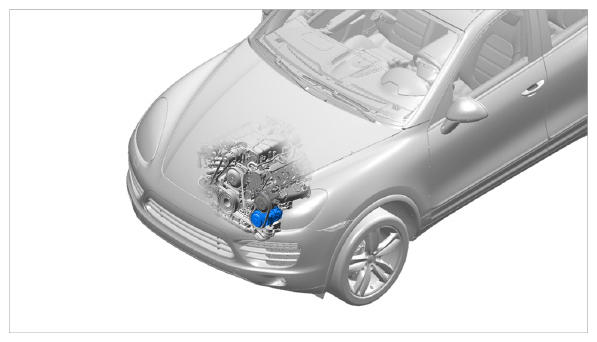

Fig 1: Identifying V6 Hydraulic Pump Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

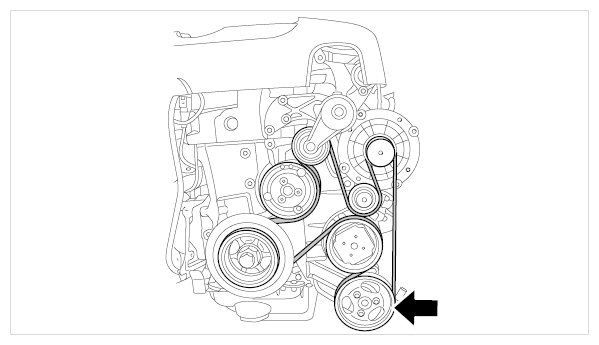

Fig 2: Identifying Hydraulic Pump On Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Damage to the power steering will occur if there is a shortage of oil in the hydraulic system. Even small leaks can cause the hydraulic fluid to escape and damage the servo pump as a result of high oil pressure occurring in the hydraulic circuit.

Grunt-like noises that can be heard when the steering is locked, or foam formation in the reservoir indicate a shortage of oil and/or that air has also been sucked in. Before filling the reservoir, any existing leaks must be eliminated on the suction side. Alternatively, the defective part on the pressure side should be replaced.

CAUTION: Increased risk of accidents and material damage if too much Pentosin CHF 202 is filled in or if Pentosin CHF 202 comes into contact with the coolant hoses when filling or topping up.

It is possible to overfill the system, causing Pentosin CHF 202 to overflow onto coolant hoses and other components.

→ The engine must be run for approx. 20 seconds prior to the fluid level check. Multiple steering operations (maneuvering) will change the fluid level in the reservoir. Check the fluid level.

→ If coolant hoses come into contact with Pentosin, clean them thoroughly with water IMMEDIATELY.

→ Replace visibly swollen coolant hoses.
