Removing And Installing Hydraulic Pump: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove both lines on the hydraulic pump (suction line, pressure pipe). Close off the open connections with stoppers -arrows- . Collect emerging hydraulic fluid in a suitable container.

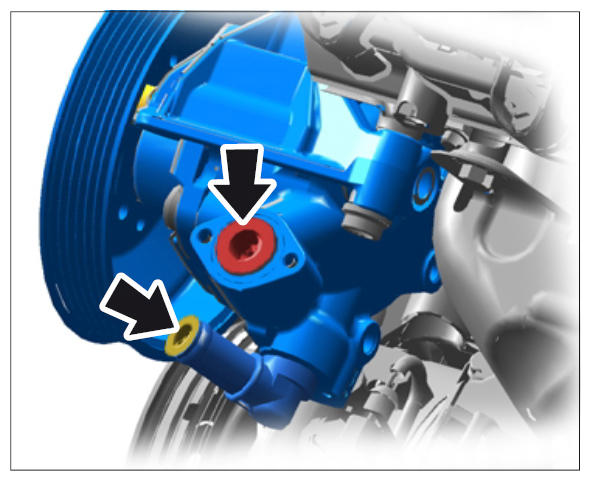

Fig 1: Locating Sealing Hydraulic Pump With Stoppers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen the pulley slightly using two-hole nut turner 3212 .
Relieve and remove drive belt.
To do this, use an open-ended wrench to turn the belt tensioner clockwise -arrow- and remove the drive belt from the tensioning roller -8- . Then relieve the belt tensioner slowly. → 137819 REMOVING AND INSTALLING DRIVE BELT

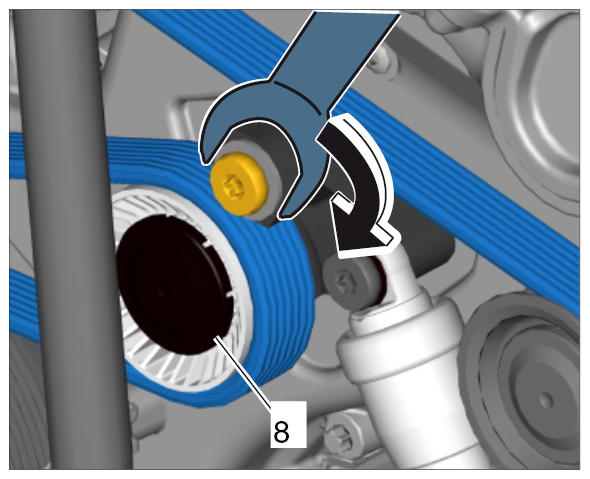

Fig 2: Removing Drive Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove belt pulley.
Remove heat shield from exhaust manifold.
Remove the hydraulic pump (front fastening screws -1- , rear fastening screw -2- ).

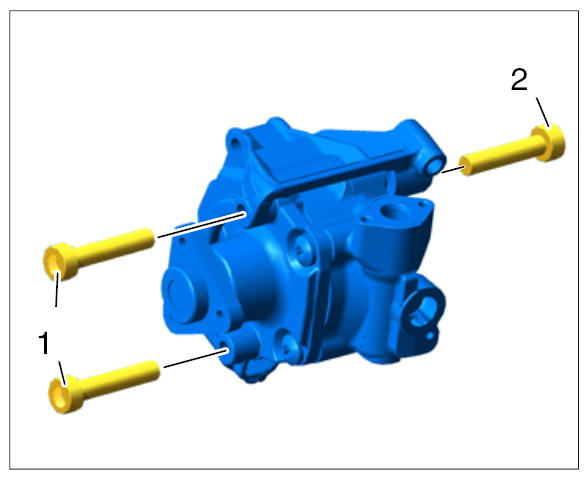

Fig 3: Identifying Fastening Screws On Hydraulic Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Remove front fastening screws on the hydraulic pump (2 x) -arrows- .

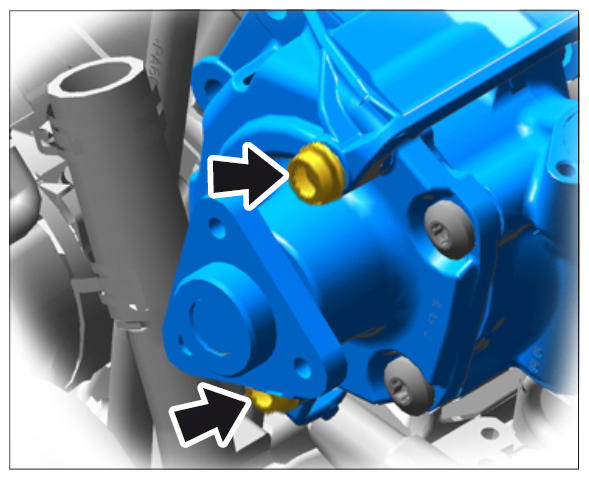

  Fig 4: Locating Front Fastening Screws On Hydraulic Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Remove rear fastening screw on the hydraulic pump (1 x) -arrow- .

  Fig 5: Locating Rear Fastening Screw On Hydraulic Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully remove the hydraulic pump.
