Installing Hydraulic Pump For Steering

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt in the hydraulic system can damage the system.

Ensure absolute cleanliness at all times!
Close off the openings of hoses, lines and units using suitable stoppers.
Replace visibly swollen coolant hoses!
The reservoir must always be replaced if individual or multiple components are replaced.
Only use Pentosin 202 to fill the hydraulic system.

Information

Observe correct tightening torques. → 4X00IN TIGHTENING TORQUES FOR STEERING

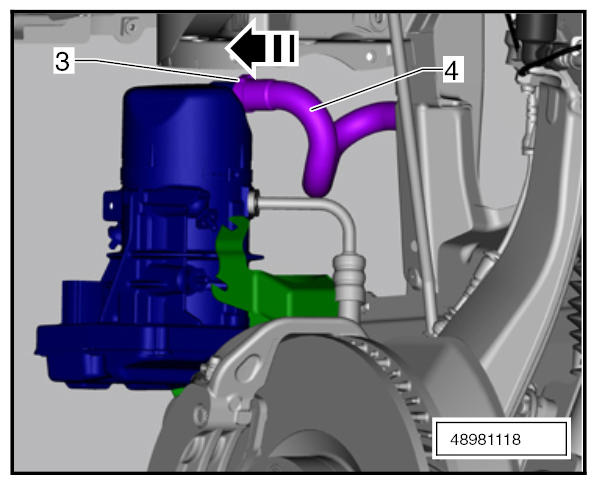

Fit suction hose -4- to the connection on the hydraulic pump and secure with the spring band clamp -3- .

Fig 1: Fitting Suction Hose To Connection On Hydraulic Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

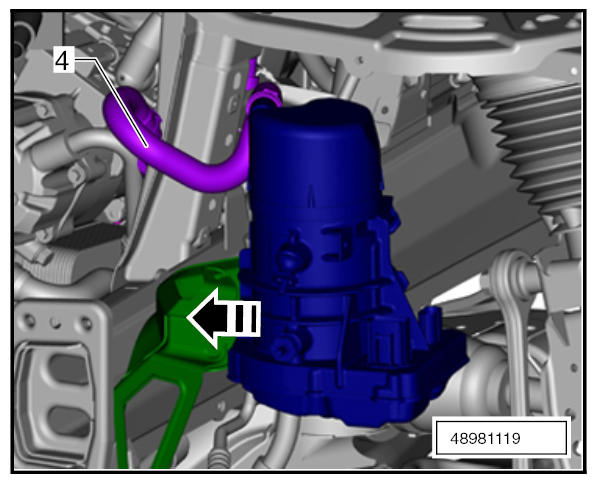

Carefully position the hydraulic pump from the side and insert it into the holder.

Fig 2: Inserting Hydraulic Pump In Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

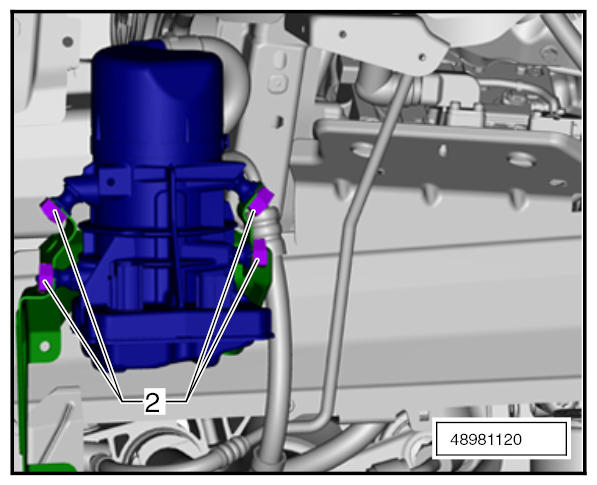

Tighten the four M6 fastening nuts -2- used to secure the hydraulic pump to the holder.

Fig 3: Identifying Hydraulic Pump To Holder M6 Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

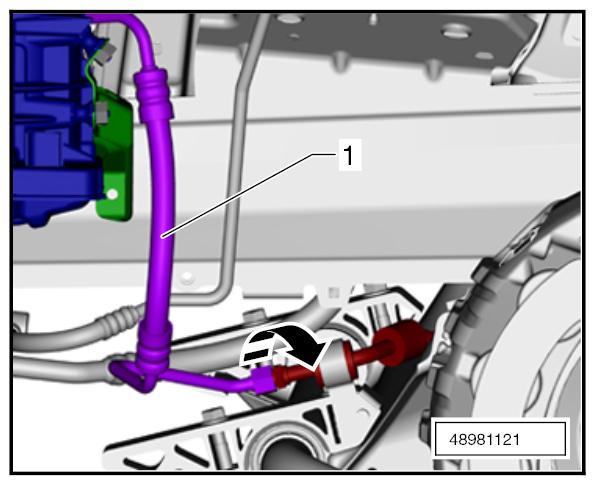

Connect and secure the pressure line for the hydraulic pump -1- to the connection point with the pressure line for the steering gear.

Fig 4: Identifying Hydraulic Pressure Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

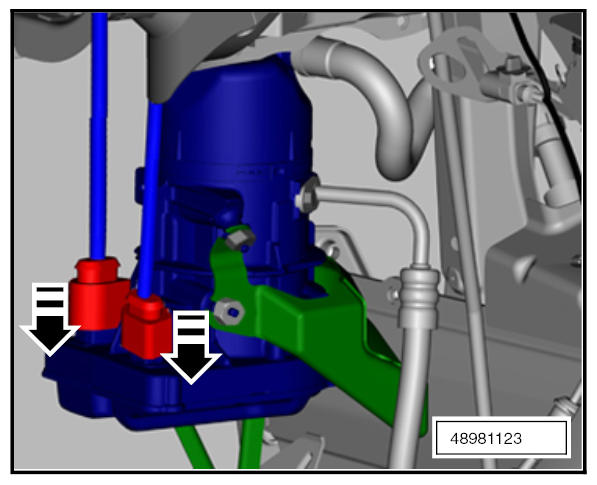

Plug in the two electric connectors on the hydraulic pump.

Fig 5: Disconnecting Plugging In Connectors On Hydraulic Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
