Installing Reservoir

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

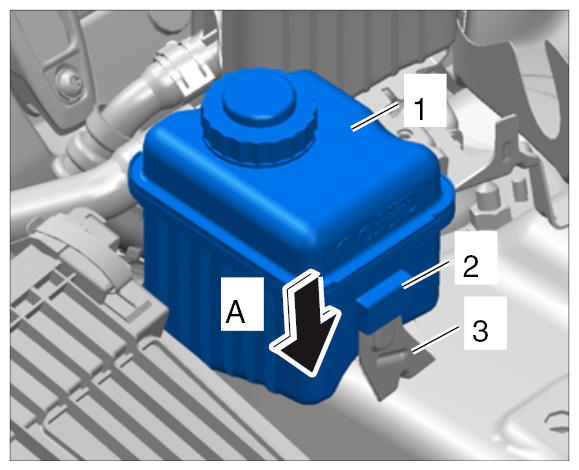

  1. Insert the retaining lug -2-  on the reservoir -1-  at the rear into the guide -3-  .
    Fig 1: Inserting Retaining Lug On Reservoir
    G09937793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit fastening nut -4-  . → 4X00IN TIGHTENING TORQUES FOR LEVELLING SYSTEM
    Fig 2: Identifying PDCC Reservoir, Power-Steering Reservoir, Suction And Return Line
    G09937794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

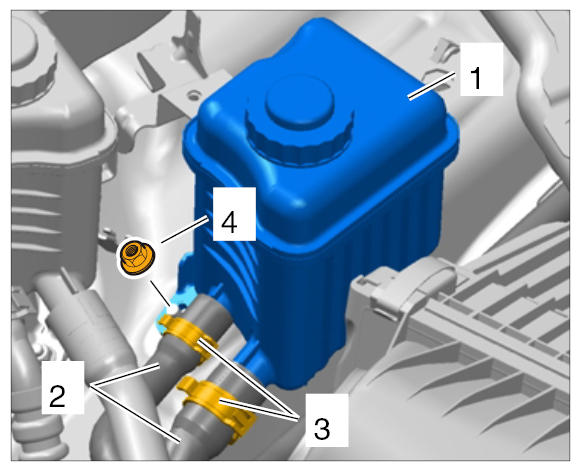

  3. Fit hoses -2-  .
    1. 3.1. Attach hoses -2-  to the connections on the reservoir -1-  . Pay attention to markings on the reservoir and hose!
    2. 3.2. Position and secure the clamps -3-  on the hoses.

    Information

    Overfilling the system can cause Pentosin to overflow onto coolant hoses and other components. The engine must be run for approx. 20 seconds prior to the fluid level check. Check the fluid level.

  4. Fill the reservoir with Pentosin.
