Removing Power-Steering Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Increased risk of accidents if Pentosin CHF 202 gets onto the surrounding area (e.g. onto the coolant hoses) when the oil cooler hoses are loosened (opened).

Possible danger of injury or damage.

→ Collect emerging Pentosin.

→ Wear protective goggles when carrying out overhead work on lines with Pentosin.

→ Wear protective gloves.

→ If coolant hoses come into contact with Pentosin, clean them thoroughly with water IMMEDIATELY.

→ Replace visibly swollen coolant hoses.

Information

After pulling off the hoses, close off all openings immediately using commercially available rubber stoppers.

The power-steering cooler is located at the radiator module (water cooler, condenser, automatic transmission oil cooler, power-steering cooler), behind the front apron.

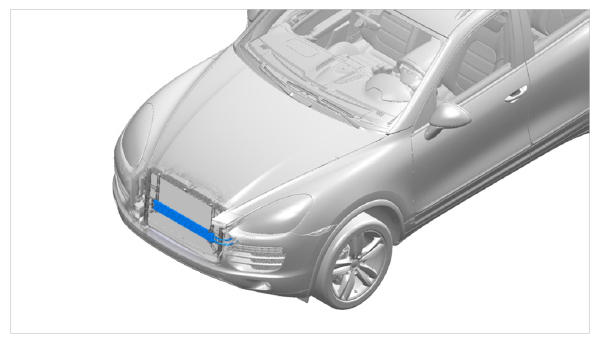

Fig 1: Identifying Power-Steering Cooler Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove center air guide -1- .

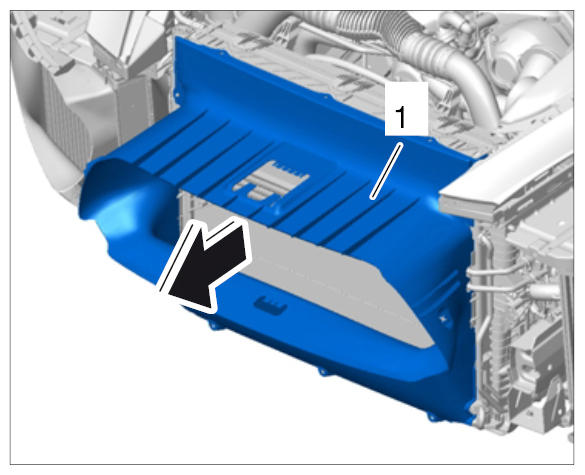

Fig 2: Removing Centre Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect hydraulic lines to the power-steering cooler.

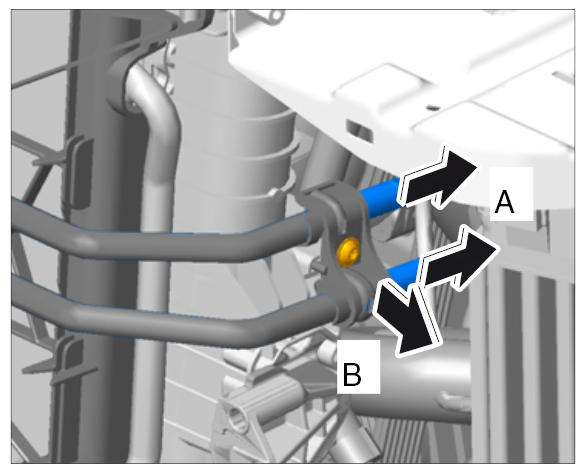

Fig 3: Pulling Off Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Loosen clamps.
2. 2.2. Pull off both hoses -A- .
3. 2.3. Unscrew fastening screw and remove the hose holder -B- .
Use a suitable container to collect any Pentosin that runs out.
Unclip power-steering cooler from the two holders -2- (-C- ).

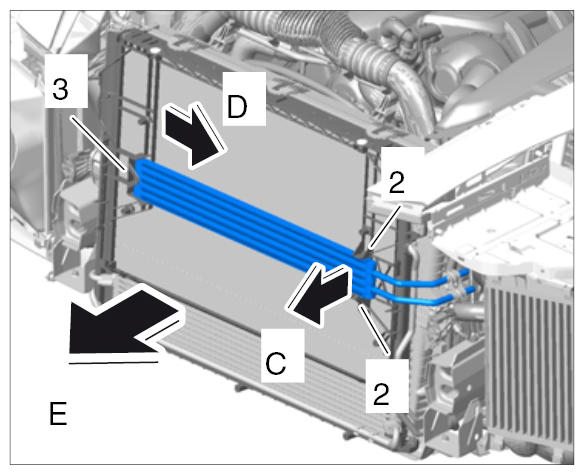

Fig 4: Removing Power-Steering Cooler From Holders
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull power-steering cooler to the left -D- out of the bracket -3- .
Remove power-steering cooler by pulling it forward -E- .
