Installing Power-Steering Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position the cooler -E- and guide it into the holder -3- from the left -D- .

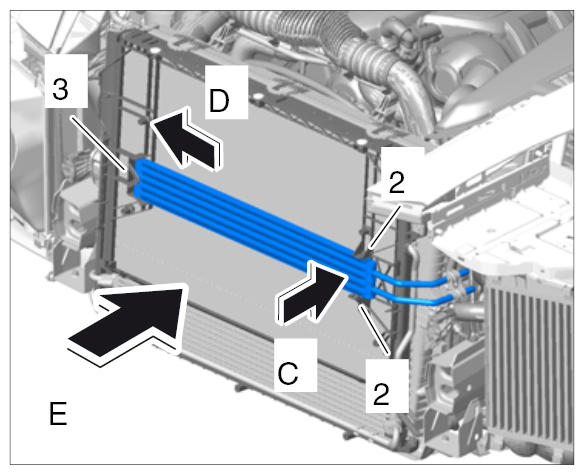

Fig 1: Installing Power-Steering Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in the cooler at the two holders -2- (-C- ).
Secure hydraulic lines to the power-steering cooler.

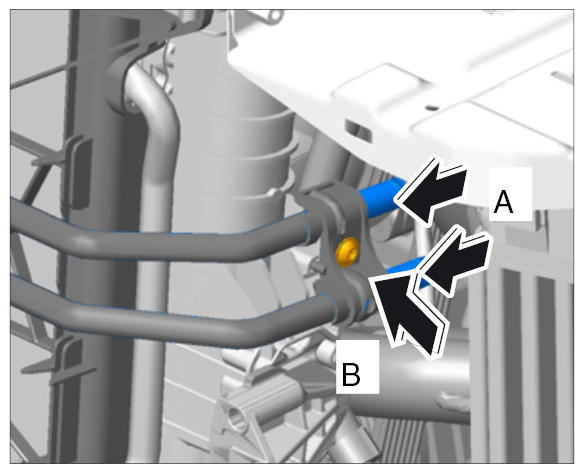

Fig 2: Installing Hydraulic Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Position hose holder -B- and tighten the fastening screw.
2. 3.2. Connect both hoses -A- .
3. 3.3. Tighten clamps.
Install center air guide -1- .

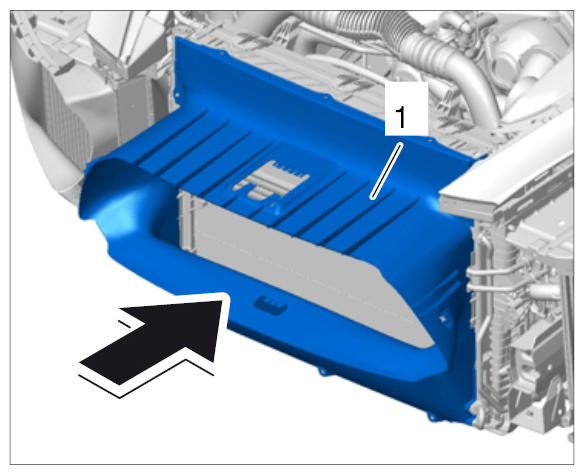

Fig 3: Installing Centre Air Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
