Checking Power-Steering Fluid Level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Increased risk of accidents and material damage if too much Pentosin CHF 202 is filled in or if Pentosin CHF 202 comes into contact with the coolant hoses when filling or topping up.

It is possible to overfill the system, causing Pentosin CHF 202 to overflow onto coolant hoses and other components.

→ The engine must be run for approx. 20 seconds prior to the fluid level check. Multiple steering operations (maneuvering) will change the fluid level in the reservoir. Check the fluid level.

→ If coolant hoses come into contact with Pentosin, clean them thoroughly with water IMMEDIATELY.

→ Replace visibly swollen coolant hoses.

Information

The supply tank is located at the front left of the engine compartment -arrow- .

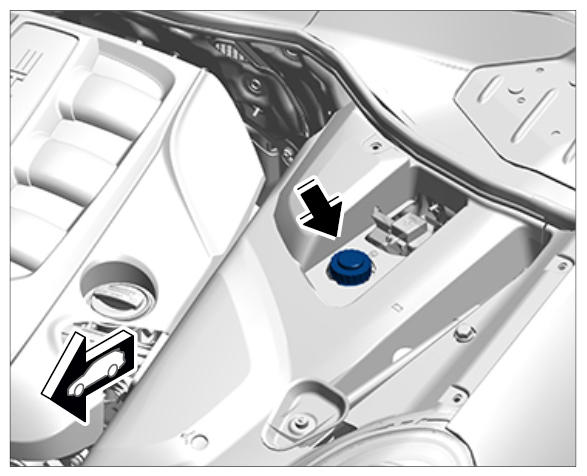

Fig 1: Locating Power-Steering Reservoir Cap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A dipstick with MIN/MAX markings is attached to the reservoir cap. The markings are for a fluid level on a cold engine (approx. 20 °C).
The MAX marking can easily be exceeded at higher temperatures.

Check the fluid level (Pentosin CHF 202) when the engine is stopped and when it is cold (approx. 20 °C).

The fluid level must be between the MIN and MAX markings → Dipstick and power-steering reservoir .

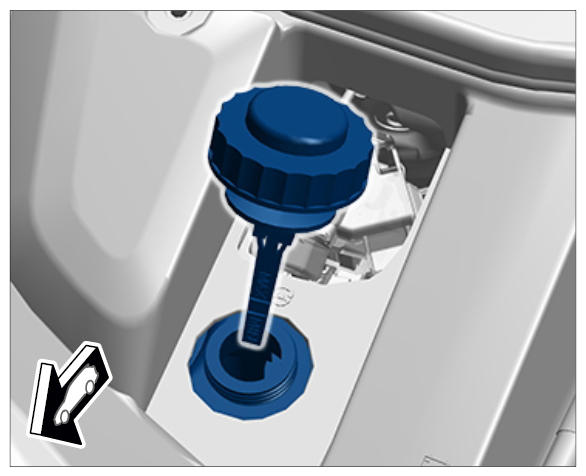

Fig 2: Identifying Dipstick And Power-Steering Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Start the engine and run it at idle speed for approx. 20 seconds. Stop the engine.
Open the engine cover and reservoir.
Wipe dipstick. Close and then re-open cap. The fluid level must be in the indicated range (MIN/MAX level at approx. 20 °C). Top up with Pentosin if necessary.
