Removing Tie-Rod Ball

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

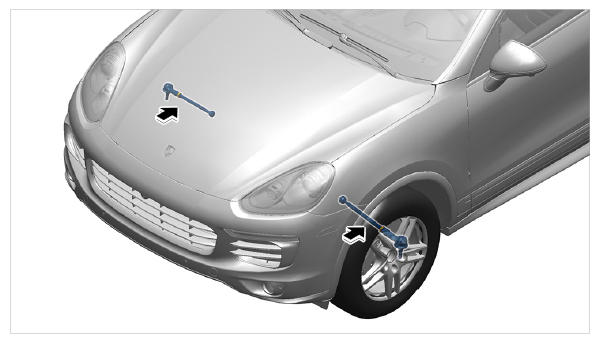

Fig 1: Locating Tie-Rod Ball Installation Position
G09937754Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. To make it easier to remove the tie-rod ball, swivel the relevant wheel bearing housing so that the tie rod is fully extended.

    Information

    Mark the position of the tie-rod ball on the thread before unscrewing it from the tie rod.

    Count and write down the number of turns when unscrewing the tie-rod ball.

    This eliminates the need to perform an approximate adjustment of the steering trapeze during installation.

    This does not  replace suspension alignment.

  2. Detach tie-rod ball -1-  from tie rod.

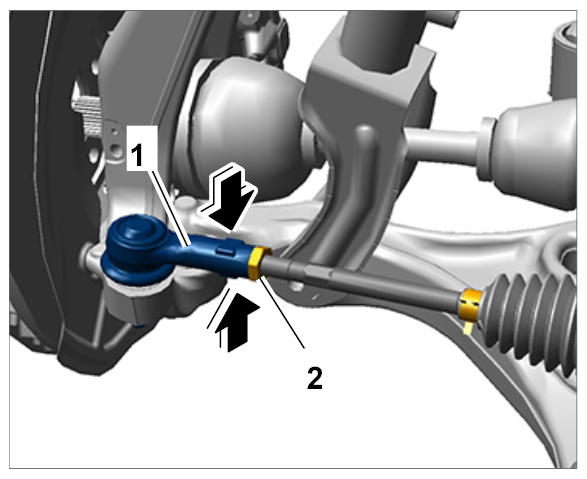

    Fig 2: Detaching Tie-Rod Ball
    G09937755Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Counter the tie-rod ball -1-  at the flattened areas -arrows-  using a suitable open-ended wrench.
    2. 2.2. Loosen lock nut -2-  .
  3. Unscrew fastening nut -1-  from the ball pin for the tie-rod ball -2-  until it is flush with the thread of the ball pin.

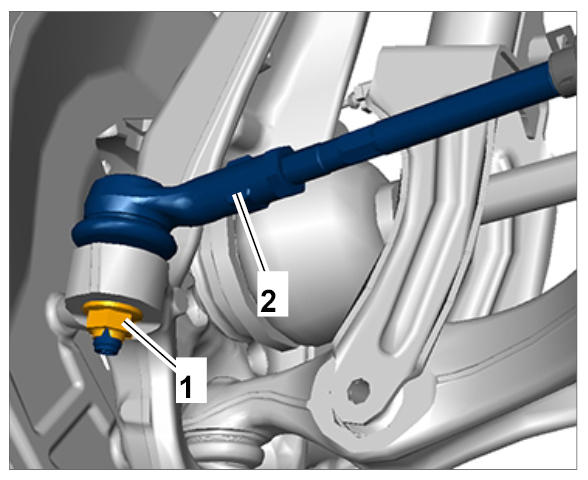

    Fig 3: Identifying Tie-Rod Ball On Wheel Bearing Housing
    G09937756Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Press tie-rod ball off the wheel bearing housing. → Pressing off tie rod

    When pressing it off, make sure not to damage the rpm sensor.

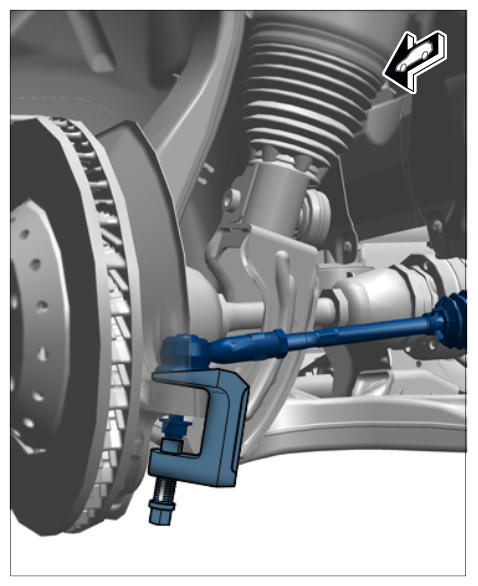

    Fig 4: Pressing Off Tie Rod
    G09937757Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Position ball joint puller T10187  under the ball pin and fit it on the fastening nut.
    2. 4.2. Press tie-rod ball out of the tapered end of the wheel carrier using ball joint puller T10187  .

      Screw in hexagon on the ball joint puller T10187  until the tie-rod ball comes out of the tapered end of the wheel carrier.

  5. Screw fastening nut -1-  off the ball pin of the tie-rod ball -2-  .

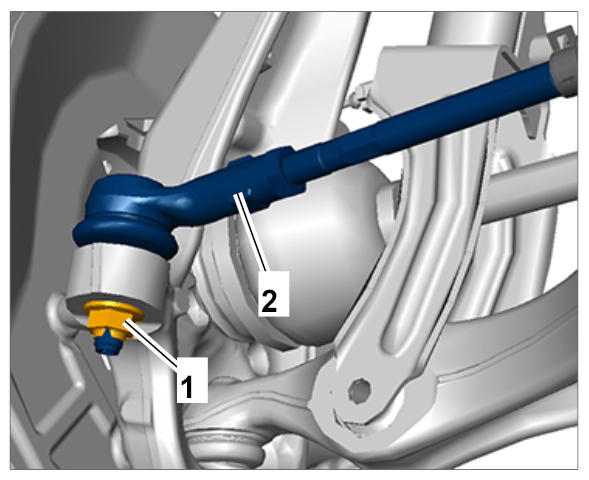

    Fig 5: Identifying Tie-Rod Ball On Wheel Bearing Housing
    G09937758Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Unscrew tie-rod ball -3-  from tie rod -1-  and remove it.

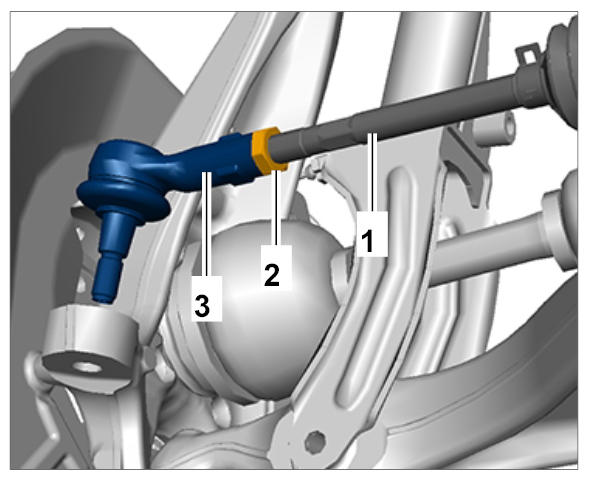

    Fig 6: Identifying Tie-Rod Ball On Tie Rod
    G09937759Courtesy of PORSCHE CARS NORTH AMERICA, INC.
